Tagra | RF 2.4GHz & DMX | Mains Powered 100-240V | LED Wall Plate & 5-in-1 Receiver Bundle | Single Colour | 4 Zones

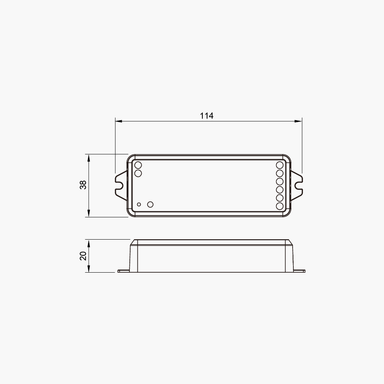

Receiver Specifications:

• Voltage: 12-24V DC
• Max. Power: 180W @ 12V | 360W @ 24V
• Input Current: 15.5A
• Output Current: 3A per channel

Wall Plate Specifications:

• Input Voltage: 100-240V AC
• Input Current: Max. 0.1A
• Output Signal: DMX 512, RF 2.4GHz
• Control Zones: 4
• Control Distance: 10 metres (unobstructed)

Information:

Perfect for creating RF controlled lighting via a mains powered wall plate. Available in both black and white options to suit your interior design needs. Wireless RF 2.4GHz control between the wall plate and receiver is simple to use via the sensitive, high strength glass touch panel.

Once installed, a short press of the match key on the receiver followed by a short press on a zone key on the wall plate, pairs them together for easy control.

Manufactured from high quality materials and components and comes with a 5 year warranty as standard.

Installation:

Available in IP20 making it suitable for indoor installation. Can be installed into a standard UK back box (35mm depth) using the detachable baseplate. We recommeded this product be installed by a qualified electrician.

Required Products:

The list of products below are required in order to properly operate this product:

• 12-24V LED Driver
• 12V or 24V Single Colour LED Strip Light
