Tagra | Slim | Integrated LED Downlight

Specifications

• Voltage - 220-240V
• Wattage - Selectable - 4W, 6W
• Colour Temperature - Selectable - 2700-6500K
• CRI - 80+
• IP Rating - IP65

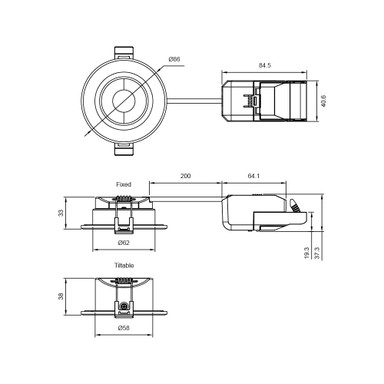

• Cut Out - 70mm
• Diameter - 86mm
• Warranty : 5 Years

Introduction

Engineered for professional installation, our Fire-rated Slim Integrated LED Downlight range delivers outstanding performance in an ultra-slim 33 mm profile —  shallower than typical models. This versatile fitting, featuring 2 selectable wattages and 4 selectable CCTs, is ideal for both new builds and retrofit projects across residential and commercial applications.

This product has been independently tested by SGS and is compliant with BS 476-20:1987 + AC:2014 and BS 476-21:1987 + AC:2014 standards. The luminaire achieved the following fire resistance ratings:

• Solid Timber: 30 / 60 / 90 minutes
• Metal Web Joist: 30 minutes
• Joist: 30 minutes

Key Features & Benefits

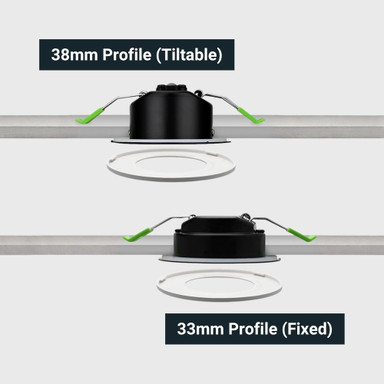

• Ultra-Slim Design (33 mm Depth) - Perfect for shallow ceiling voids, ensuring easy installation where space is limited.

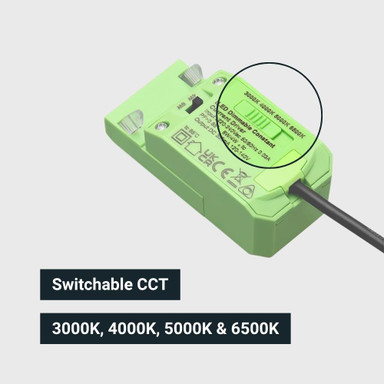

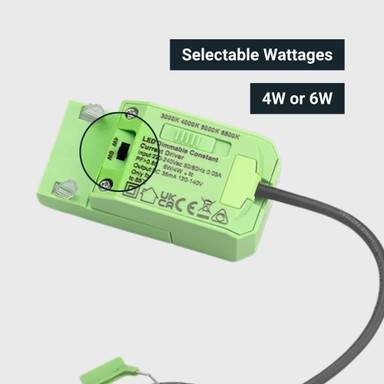

• Switchable Wattage & Colour Temperature (CCT) - Flexible performance from a single fitting — select the desired output and colour on site.
• IP65 Rated - Suitable for use in bathrooms and other indoor, high-moisture environments.
• Interchangeable Bezels - White supplied as standard. Satin Nickel, Brushed Brass and Black bezels sold separately.
• Trade-Ready Reliability - Built for speed of install, consistency, and long-term dependability.
• 5-Year Warranty - Peace of mind guaranteed for professional projects.

Installation Guidance

Ensure mains supply is disconnected before installation & do not install or use the product if it is damaged. This product must be installed by a suitably competent person in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to commencing work.
