Varilight | TRIAC | 230V | Push On/Off Rotary | LED Dimmer | 0-100W | Max 0.4A | Single Colour
MKP100
£9.60 Inc. VAT
Key Features
- Input voltage: 230V
- Load (min/max): 0W - 100W
- Colour control type: Single colour
- Dimming range (Min/Max): 10% – 100%
- Number of control channels: 1
- Max output current per channel: 0.4A
- IP Rating: 20
- Warranty: 10 Years
| Quantity | Price |
|---|---|
| 4 - 9 | £8.40 (save £1.20) |
| 10 + | £7.78 (save £1.82) |
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 230V AC
- Frequency: 50Hz
- Output Current: Max. 0.4A
- Max. Load: 100W
- Push On/Off Function: Yes
- Dimming Function: Yes

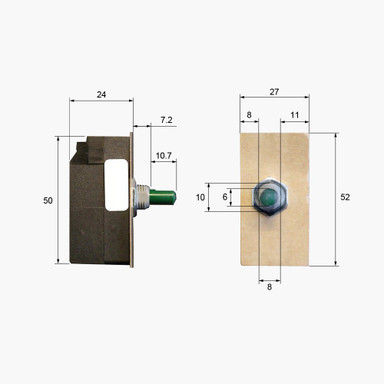

- Dimensions (mm): 52L x 26W x 42H
- Warranty: 10 Years
Information:
Introducing the Varilight 230V 2-Way Push On/Off Rotary LED Dimmer. This product has V-Com intelligent TRIAC leading edge dimming technology and also features built-in soft start and overload protection. This product is capable of both push on/off function and dimming function. We recommended using with our Tagra Dimmable TRIAC LED Drivers.
Pair with our Varilight Dimmer Faceplates to suit your interioir requirements. These faceplates are available in brushed brass, brushed steel and matt black.
Manufactured in the UK from high quality materials and components and comes with a 10 year warranty as standard.
Be sure to check out our full range of switches and sockets.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply. Can be installed into a standard UK back box (35mm depth). We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- Tagra TRIAC Dimmable Constant Voltage LED Driver
- Varilight Dimmer Faceplate
Videos
Product Specification
| Warranty (Years) | 10 |
| Rated Life (Hours) | 87600 |
| Application Environment | DOMESTIC, OFFICE |
| Body Material | PLASTIC |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | INTERIOR |
| Mounting Type | 10MM BUSHING & NUT |
| Input Current Max. (A) | 0.42 |
| Input Current Type (A) | AC |
| Input Terminal / Connector Type | SCREWED TERMINAL |
| Input Voltage Min. - Max (V) | 230-230V |
| Body Colour | Black |
| Product Height (mm) | 50 |
| Depth (mm) | 24 |
| Product Weight (g) | 50 |
| Width (mm) | 27 |
| Constant Voltage / Constant Current | CV |
| Load Min. (W) | 0 |
| Output Current Type | AC |
| Output Terminal / Connector Type | SCREWED TERMINAL |
| Fixings Included | Yes |
| Over Current Protection | No |
| Over Temperature Protection | Yes |
| Over Voltage Protection | No |
| Operating Temperature Min. - Max. (°C) | -5℃ to 40℃ |
| Dimensions LxWxH (mm) | 24x27x50 |
| Brand | Varilight |
| Number of Zones | 1 |
| Max. Output Current Per Channel (A) | 0.4 |
| Number of Control Channels | 1 |
| Family Name | Varilight Triac Control |
| Dimming Range Min. - Max (%) | 10-100% |
