EU Chips | 0/1-10V | Mains Powered 110-240V | Rotary | LED Dimmer | 2 Channel | CCT

Specifications:

• Input Voltage: 110-240V AC, 50-60Hz
• Output Signal: 1-10V × 2 channels
• Output Current: 2 channels × 50mA
• Working Temperature: -10°C to 45°C
• Relative Humidity: 20-90% RH

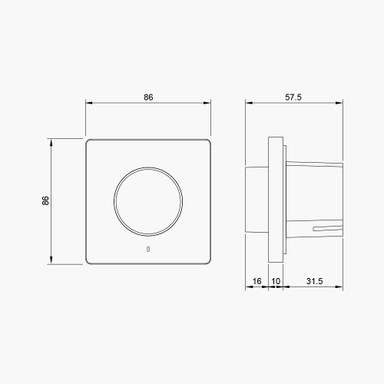

• Product Dimensions: 86 × 86 × 57.5 mm
• Net Weight: 127g
• Gross Weight: 152g

Information:

Introducing the WALLDIM203, a high-performance tunable white dimmer that combines precise brightness and color temperature adjustment. This product is designed for seamless control of lighting environments, allowing users to achieve their desired ambiance through a versatile, easy-to-use interface.

With two 1-10V channels, it offers independent brightness and color temperature control. The dimmer features a long press for brightness adjustment and a double-click action for color temperature tuning. This allows a smooth transition between warm and cool light, ideal for creating comfortable lighting settings across different spaces.

This dimmer also includes a power-off memory function, ensuring that your settings are retained even after a power interruption. Suitable for indoor installations, the WALLDIM203 brings both functionality and aesthetic appeal.

Installation:

The WALLDIM203 can be easily installed in a standard wall electrical box. To ensure proper installation, follow these steps:

1. Mount an electrical box inside the wall.
2. Detach the panel from the back cover using a screwdriver along the gap.
3. Connect the wires according to the provided wiring diagram.
4. Secure the back cover to the electrical box with screws.
5. Snap the glass panel back onto the bottom box.

Operation:

• Switch: Single short press for on/off control.
• Brightness Adjustment: Long press the knob for 2 seconds. The white indicator light will turn on, indicating brightness adjustment mode. Turn the knob clockwise to increase brightness and counterclockwise to decrease brightness.
• Color Temperature Adjustment: Double-click the knob. The yellow indicator light will turn on, indicating color temperature adjustment mode. Turn clockwise to increase white light intensity (warm light will dim gradually), or counterclockwise to increase warm light intensity (white light will dim gradually).

Important Notes:

• Ensure the output signal is not short-circuited or connected to high voltage, as this may damage the dimmer knob.
• This dimmer provides two 1-10V output channels, with each channel supporting a maximum current of 50mA. Channel 1 controls color temperature, while Channel 2 controls brightness.

Required Products:

For optimal operation, the following accessory is required:

• A 1-10V compatible LED driver.
