A Comprehensive Guide to LED Controllers

Whether an installation requires dimming capabilities, colour control, or system integration, understanding LED controllers is essential for achieving consistent performance.

These devices manage how LED products behave, from brightness and colour to scene programming and automation.

This guide explains the main controller types, their technical differences, and how to select the right option for each project, from simple single-room dimmers to advanced digital networks.

What Is an LED Controller?

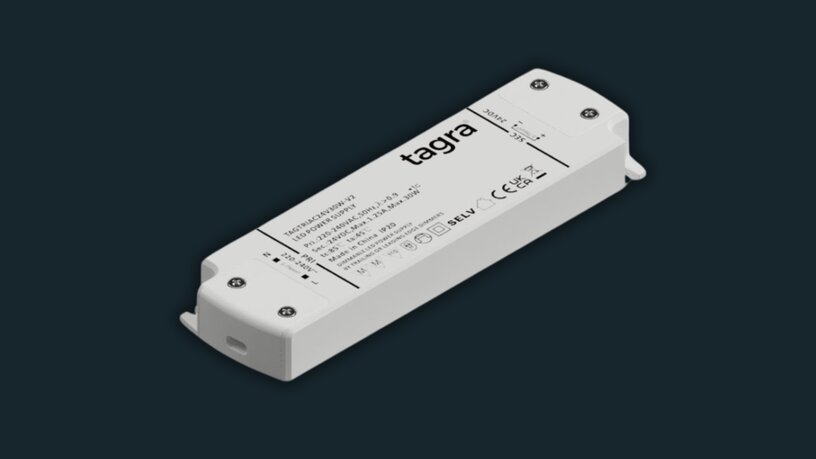

An LED controller manages power and data between the driver and the lighting circuit, defining brightness, colour, and dynamic effects.

Options range from simple dimmers to digital control networks such as DMX and DALI, each suited to different project scales and performance needs.

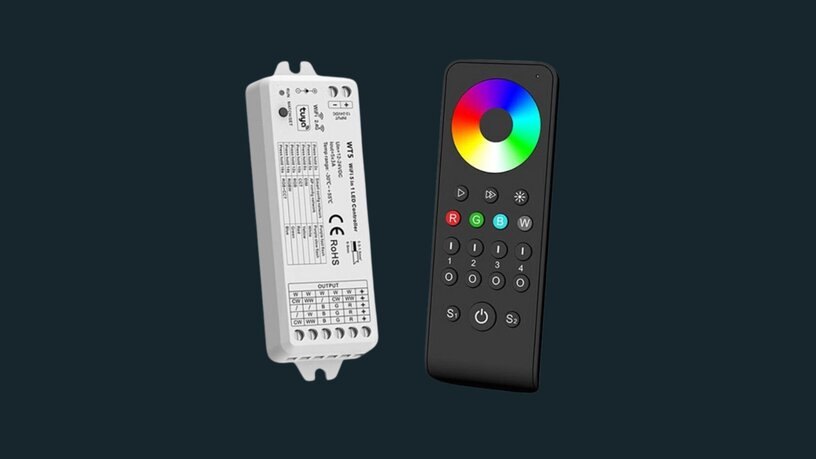

Standalone and Wireless LED Controllers

For small to medium installations, standalone controllers offer a simple and effective way to control lighting without complex setup.

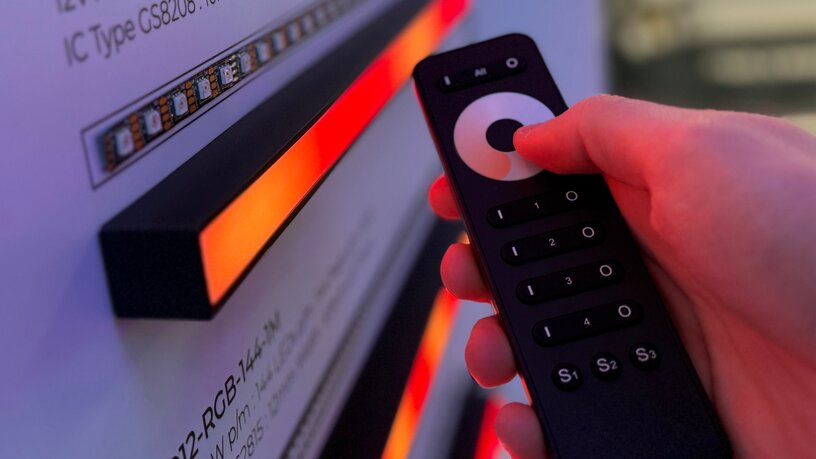

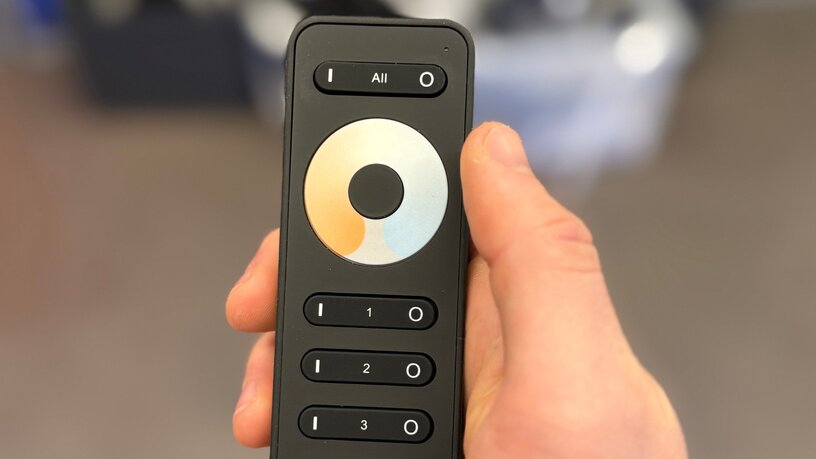

Typical options include in-line dimmers, RF remotes, and wall-mounted touch panels. RF units operate through walls and over distance, providing flexibility where controllers are concealed.

Modern versions often include Wi-Fi connectivity, allowing control through smartphone apps or integration with systems such as Alexa and Google Assistant.

Key features:

Ease of use: Plug-and-play setup for decorative or single-zone lighting.
Zoning: Multi-channel RF units enable sectioned control from one remote.
Smart integration: Wi-Fi models allow scene scheduling and automation.
Limits: Lower power handling and less synchronisation accuracy across multiple fixtures.

DMX Control Systems (Digital Multiplex)

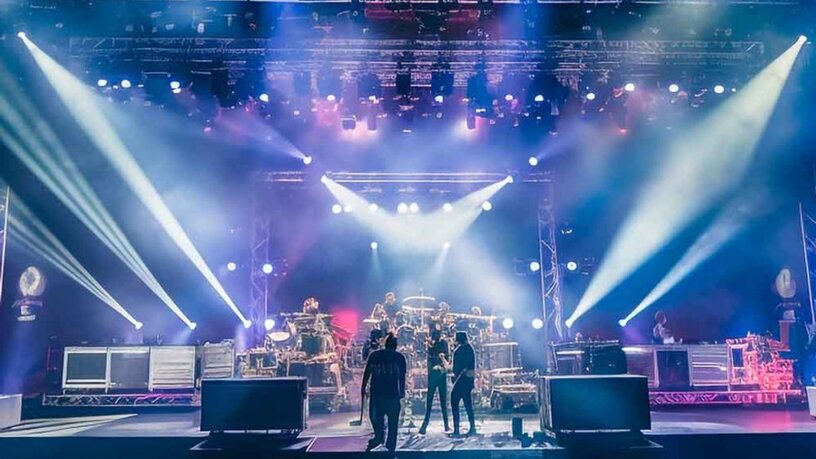

DMX512 is the primary protocol for large, dynamic lighting systems. A single DMX universe carries up to 512 control channels, allowing precise management of RGB, RGBW, and moving fixtures.

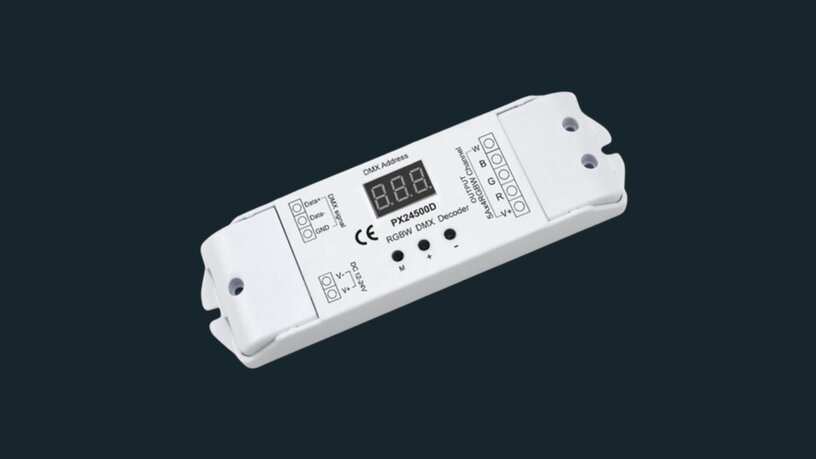

Controllers send continuous digital data through a daisy-chained network, while DMX decoders translate that data into PWM output for LEDs.

Advantages:

Scalability: Controls up to 512 channels per universe, expandable through multiple universes.
Real-time response: Fast data transmission enables smooth fades and dynamic effects.
Compatibility: Widely adopted across brands and systems.
Scene programming: Supports complex effects, zoning, and timed cues.

Considerations:

Setup requires correct addressing and termination to prevent signal issues. DMX is one-way, meaning no feedback from fixtures. For monitoring and automation, DALI may be preferred.

DALI Control Systems (Digital Addressable Lighting Interface)

DALI is a bidirectional protocol designed for building automation and centralised control. Each loop supports up to 64 devices, individually addressable and grouped as needed.

DALI enables scene setting, monitoring, and integration with building management systems. It uses a two-wire bus to communicate dimming commands and receive feedback from drivers and sensors.

Advantages:

Two-way communication: Fixtures report status and confirm received commands.
Granular control: Up to 16 groups and scenes per loop, with smooth dimming from 0 to 100 percent.
Integration: Commonly tied into building management systems for energy and occupancy control.

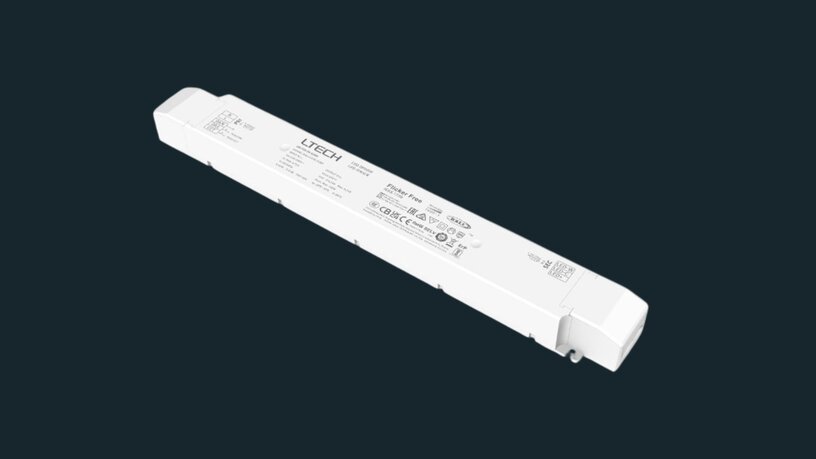

Flexible setup: Works with DALI drivers or DALI-to-PWM decoders for LED strips.

Applications:

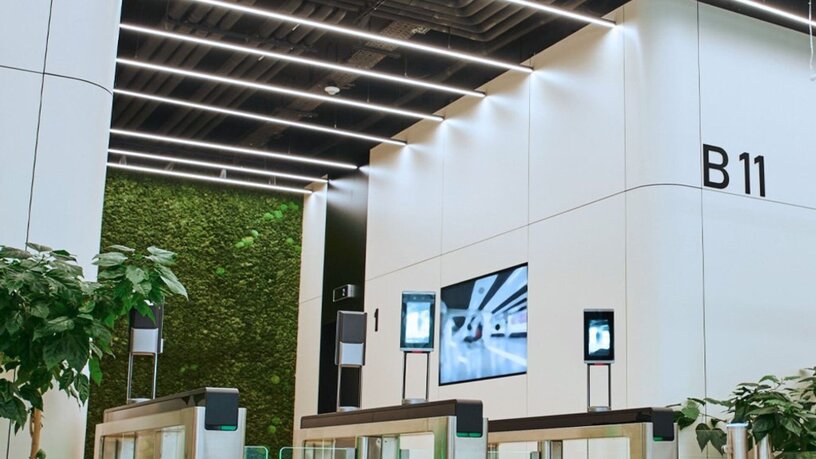

DALI suits projects requiring centralised control, energy efficiency, and monitoring, such as offices, hotels, and large commercial spaces.

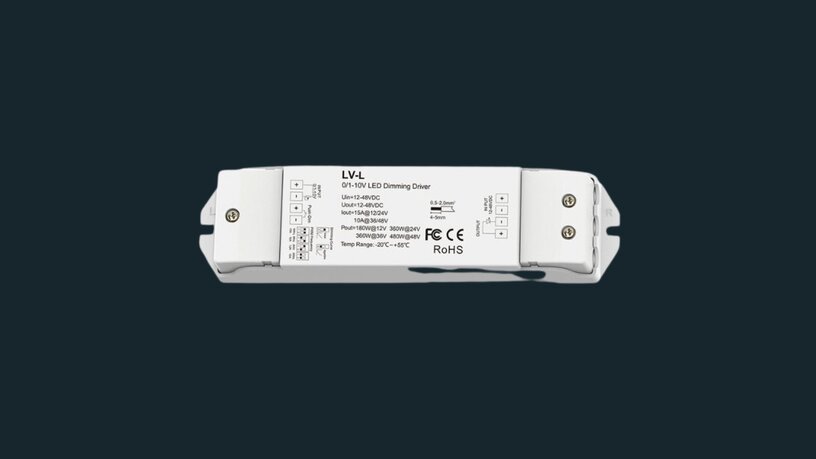

0–10V Dimmers and Analog Control

0–10V dimming remains a reliable analogue method for brightness control. A DC signal between 0 and 10 volts determines output, with two low-voltage wires linking the dimmer and drivers.

Advantages:

Simple and reliable: Voltage directly dictates brightness.
Ease of wiring: Two control wires link multiple drivers within a single zone.
Cost-effective: No complex addressing or digital setup required.

Limitations:

This method offers no feedback or individual zone control. It remains practical for commercial or retail projects where uniform dimming is sufficient.

Mains Dimming (TRIAC / Phase Cut Dimmers)

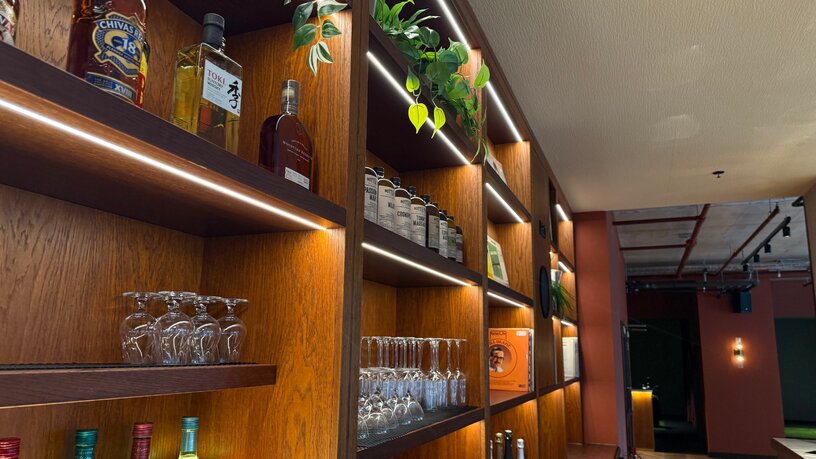

Phase cut dimming uses TRIAC wall dimmers to reduce mains voltage and control compatible LED drivers. It is common in retrofit or hospitality applications where existing wiring is retained.

Advantages:

Retrofit compatibility: Uses existing wiring and dimmer infrastructure.
Ease of control: Ideal for small commercial or hospitality projects requiring simple wall-dial dimming.

Limitations:

Phase cut dimming is less accurate at low dim levels and unsuitable for colour-changing systems. Compatibility testing between dimmer and driver is essential to avoid flicker or limited dimming range.

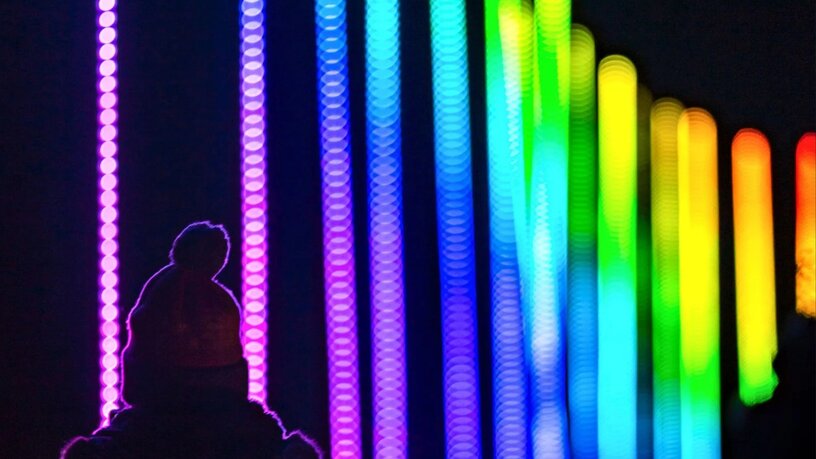

Addressable Pixel LED Controllers

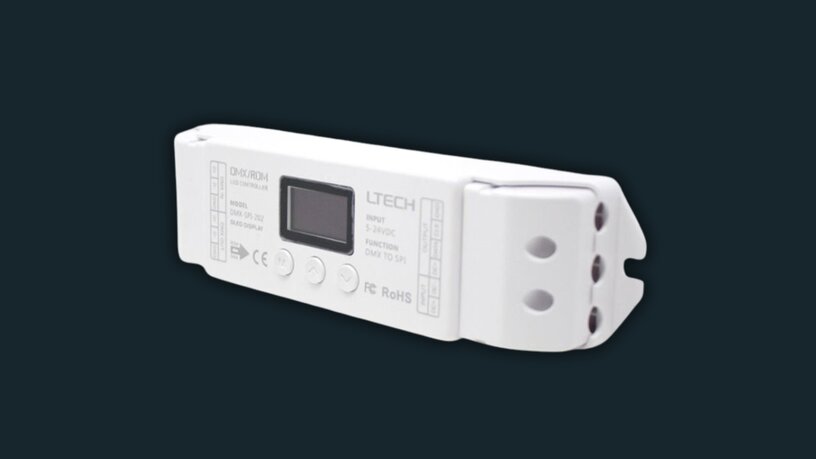

Pixel controllers drive individually addressable LEDs, sending data to each node for animated and mapped effects. They interface with software such as Madrix or xLights and support protocols including DMX-SPI and Art-Net.

Advantages:

Preset effects: Built-in chases, gradients, and patterns.
Custom programming: Integration with sequencing software for detailed animation.
Scalability: Controls hundreds or thousands of LEDs per unit.
Synchronisation: Supports multi-controller coordination over networked systems.

Applications:

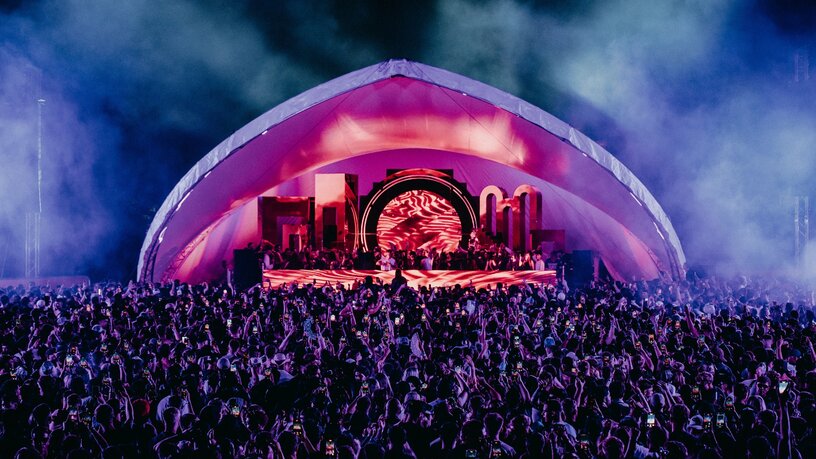

Used in façade lighting, stage design, interactive art, and immersive environments where dynamic control is required.

Smart Home and App-Based Controllers

Smart controllers using Wi-Fi, Zigbee, or Bluetooth enable wireless management through apps or automation platforms. They support scene control, scheduling, and voice commands within home or small commercial systems.

While suitable for flexible environments, reliability depends on network quality. For critical or architectural lighting, wired control protocols remain preferred.

Key Considerations When Choosing an LED Controller

Project scale: Match controller complexity to system size.
Functionality: Define dimming, colour mixing, or animation needs.
Integration: Align with building or AV systems.
Power: Verify voltage and current compatibility.
Infrastructure: Plan early for cabling and control topology.
Operation: Ensure control interfaces are practical for the end user.
Future support: Confirm update and expansion options.

LED controllers are fundamental to lighting control, translating creative vision into performance and reliability.

From RF dimmers to DMX and DALI systems, the right control method determines both precision and atmosphere.

Ultra LEDs provides control solutions across every category, supporting consistent, reliable operation across commercial, architectural, and decorative lighting projects.
