LTECH | DMX | 12-24V | LED Decoder | 1 Channel | 12A | Single Colour | IP20

Technical Specifications:

• Input signal: DMX512
• Voltage: 12V~24V DC
• Output: Constant Voltage
• Channels: 1
• Current: 12A ×1CH
• Max output power: 144W/288W(12V/24V)

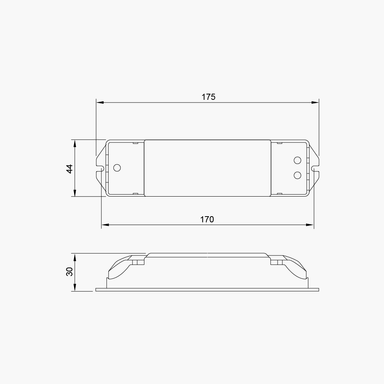

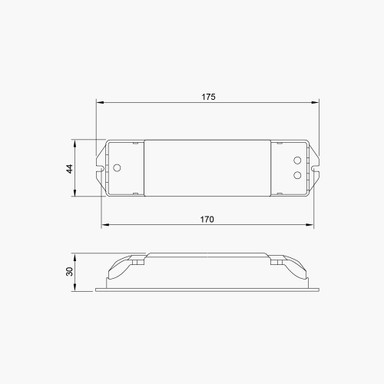

• Dimensions (mm): 175L x 44W x 30H
• Guarantee: 5 Years

Professional high end 1 Channel DMX Decoder with an OLED display. This Decoder is capable of a 8/16bit input and a frame rate as high as 850FPS, which is ideal when filming to eliminate flicker.

Three dimming curve options are also available to choose from upon installation and it also has bi-directional communication via RDM allowing the DMX address to be read and set remotely.

The 1 output channel means this decoder can control single colour LED Strips.

Please Note: This control receiver requires a DMX signal from a DMX master controller in order to function.

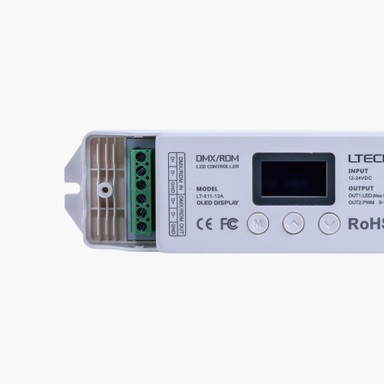

The DMX address is displayed on an OLED display on the top of the unit and can be adjusted. After the address is set, it is then stored on the unit’s internal memory bank.

This controller is capable of powering up to 144 Watts of 12V LED lighting or 288 Watts of 24V LED lighting.

An LED driver is required in order to power the LEDs connected to the output. The power output of this decoder is determined by the power output of the LED driver. As an example, to power 144 Watts of LED lighting you will require an LED driver with at least 144 Watts of power.

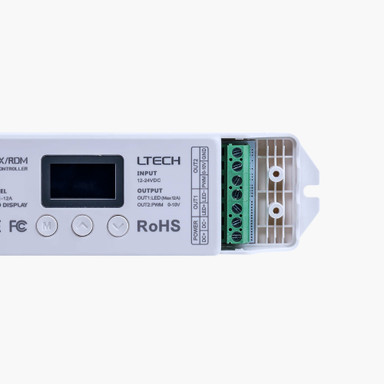

The controller has two fixing points situated on the base so it can be screwed down. It has screw terminals on the input and output for easy connection into the lighting circuit.
