LTECH | DMX | 12-24V | LED Decoder | 16 Channel | 3A | RGB+W | IP20

Technical Specifications:

• Input signal: DMX512
• Voltage: 12V~24V DC
• Output: Constant Voltage
• Channels: 12
• Current: 3A ×16CH 48A Max
• Max output power: 576W/1152W(12V/24V)

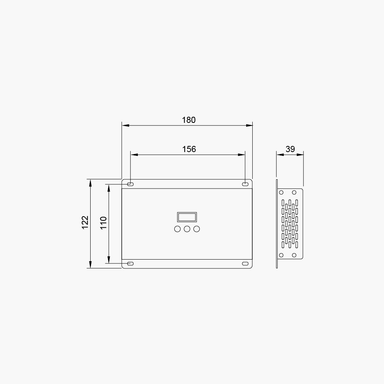

• Dimensions (mm): 180L x 122W x 39H
• Guarantee: 5 Years

Ideal for controlling RGBW LED Strip but also suitable for RGB, CCT adjustable or single colour LEDs.

Unlike many DMX decoders, this 16-channel decoder has the option to assign multiple DMX channels to one address. For example, 3 output channels can be assigned to one DMX address, allowing the power capacity per DMX address to be tripled, while reducing the number of addresses the unit handles to four.

Dimming curve options include; standard, linear, LOG, custom 0.1-9.9 dimming curve.

Featuring RJ45 and 5pin XLR sockets. The DMX address is displayed digitally and adjusted by pressing buttons mounted next to the display or Via RDM function. The frequency of the output (PWM signal) and the dimming curve can both be adjusted to give optimum dimming across the 5 output channels. Also, the dimming increments can be adjusted to either 8bit (256 levels) or 16bit (65536 levels).

Please note: This control receiver requires a DMX control signal in order to function.

This controller is capable of powering up to 576 Watts of 12V LED lighting or 1152 Watts of 24V LED lighting.

An LED driver is required in order to power the LEDs connected to the output. The power output of this decoder is determined by the power output of the LED driver. As an example, to power 150 Watts of LED lighting you will require an LED driver with at least 150 Watts of power.
