Mean Well | ICL | Inrush Current Limiter

Technical Specifications:

• 24V AC inrush current limiter (for 24V power-supply systems)
• Two inrush-limiter options: 16A and 28A continuous current
• 180-264VAC input range
• Bypass relay for efficient operation after inrush  control
• Thermal protection for overload and fire-risk prevention
• Supports capacitive loads, enabling multiple 24V power supplies on a single AC circuit
• Over-voltage category III
• Operates up to 5000M altitude
• 3-year manufacturer warranty

Model-dependent dimensions:

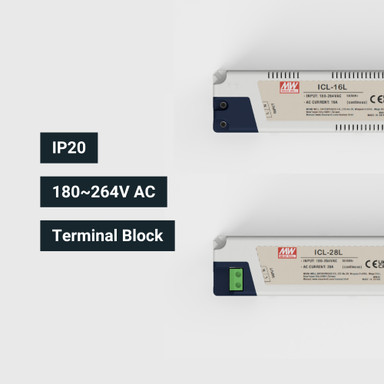

• ICL-16L: L175xW42xH24 mm
• ICL-28L: L175xW42xH24 mm

The Mean Well ICL-16L and ICL-28L suppress high inrush currents in 24V systems to prevent breaker trips and wiring stress. Their inline terminal-block design enables easy installation where DIN-rail mounting isn’t required.

The ICL-16L offers 23A inrush limiting with a 16A continuous rating, while the ICL-28Lprovides 48A inrush limiting and a 28A continuous rating, making the range suitable for both smaller and larger installation loads.

With compact housings, 220–240VAC operation, and –30°C to +70°C performance, the ICL-L series offers reliable, thermally protected inrush control backed by a 3-year warranty. Designed for space-efficient solutions to industrial control panels, LED power networks, automation systems, and any installation requiring safe and controlled AC inrush management.
