Nicolaudie | DMX | STICK-GU2 | LED Wall Plate | 128 Channel | 1 Zone

Specifications:

• Input Voltage: 5.5 - 12V DC (Max. 5.5V via USB)
• Output Signal: DMX 512
• Output DMX Channels: 128
• Control Zones: 1 Zone
• Dimming Range: Control the intensity and color of a scene as it plays

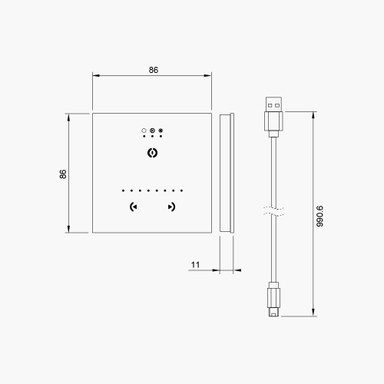

• Dimensions (mm): 86L x 86W x 10H
• Warranty: 2 Years

Information:

The STICK-GU2 is a sleek, glass-faced DMX controller designed for modern lighting control needs. It features three touch-sensitive buttons for easy scene selection, on/off control, dimming, and color adjustment. This controller supports up to 128 DMX channels and can store up to 24 dynamic or static scenes, with the first eight scenes visualized by LED indicators.

The STICK-GU2 is programmable via USB using the ESA2 software on both PC and Mac, making it suitable for a variety of applications including homes, hotels, and public environments. It is compatible with any DMX fixture or DMX LED driver, and it comes pre-loaded with 8 scenes and 42 RGB fixtures. The unit is wall-mountable and designed for easy installation in a standard 60mm wall socket.

Installation:

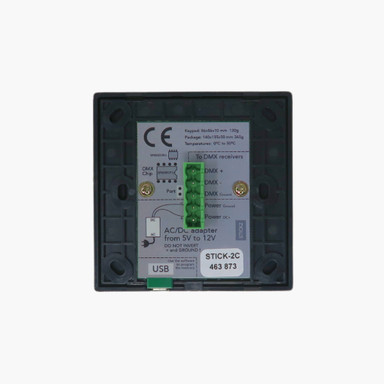

The STICK-GU2 controller can be installed in a standard 60mm electrical backbox. It requires a 5-12V DC power supply and connects to lighting receivers via DMX cables. The installation process involves mounting the backplate on the wall, connecting the green connector block, and then attaching the front panel. This product is intended for indoor use (IP rating not specified).

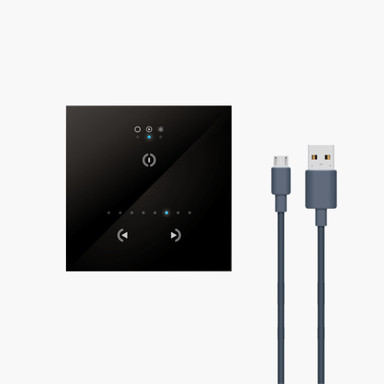

Package Contains:

This list of products below are supplied:

• DMX LED Wall Plate
• USB Cable

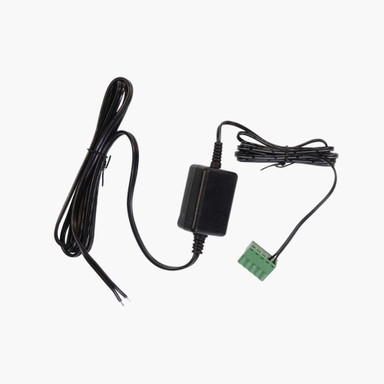

• DC7V Power Adapter
