Nicolaudie | DMX | STICK-GA2 | LED Wall Plate | 512 Channel | 1 Zone
STICK-GA2
£421.20 Inc. VAT
Key Features
- Input voltage (Min/Max): 5 V – 12 V
- Control signal - output: DMX
- Number of control channels: 512
- Number of zones: 1
- Number of scenes: 99
- IP Rating: 20
- Body colour: Black
- Warranty: 2 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 5V to 12V DC (Max. 5.5V with USB)
- Output Signal: DMX 512
- Output DMX Channels: 512
- Control Zones: 1 Zone
- Dimming Range: Live setting of the intensity and color of a scene

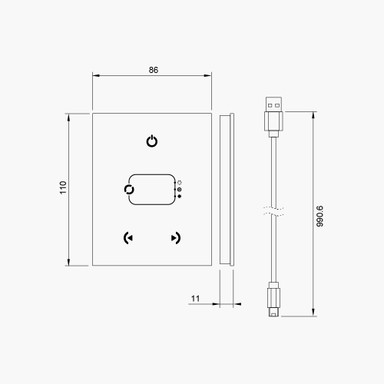

- Dimensions (mm): 86L x 110W x 10H
- Warranty: 2 Years
Information:
This wall-mounted DMX stand-alone controller features a sleek glass face design with four touch-sensitive buttons for easy operation. It allows for control of up to 512 DMX channels and can manage up to 99 dynamic or static scenes, which can be programmed through the included USB cable and control software (ESA2 for PC & Mac). The controller is ready to use out of the box with 8 pre-loaded scenes and 170 RGB fixtures. It is compatible with any DMX fixture or DMX LED driver.

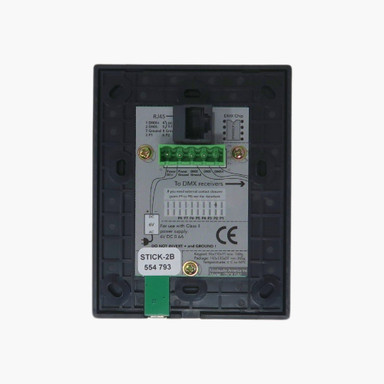

The device is equipped with the latest ARM CPU technology and is customizable for OEM needs. The installation is straightforward, with the unit designed to fit into a standard electrical backbox. Additional dry contact trigger ports on the PCB and RJ45 provide extended control options.
Installation:
The device is suitable for indoor installation (IP20) and can be mounted into a standard electrical backbox. It comes with an easy installation process, involving the connection of wires via a green connector block or RJ45 cable, followed by mounting the interface on the wall. It is recommended to allow 30 seconds after installation for the touch sensitivity to adjust.
Package Contains:
This list of products below are supplied:
- DMX LED Wall Plate
- USB Cable

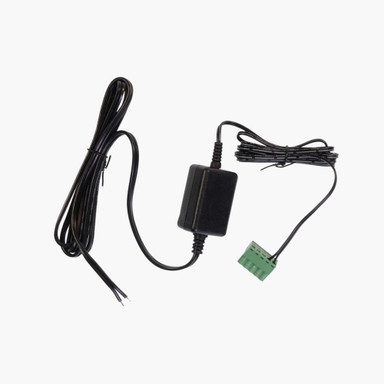

- DC7V Power Adapter
Product Specification
| Warranty (Years) | 2 |
| Control Signal - Output | DMX |
| DIP Switch | No |
| Number of Programmes | 1 |
| Number of Scenes | 99 |
| Number of Zones | 1 |
| Playback | Yes |
| Remote Included | No |
| Screen Type | 8 segment LCD |
| Rated Life (Hours) | 50000 |
| Application Environment | Hospitality, commerical |
| Body Material | Plastic & Glass |
| Ingress Protection (IP) | 20 |
| Mounting Type | Surface mounted |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | USB Micro B |
| Number of Input Terminals | 1 |
| Input Voltage Min. - Max (V) | 5-12V |
| Body Colour | Black |
| Product Height (mm) | 110 |
| Depth (mm) | 86 |
| Product Weight (g) | 145 |
| Width (mm) | 10 |
| SD Card Slot | No |
| Number of Control Channels | 512 |
| Number of Output Terminals | 2 |
| Output Terminal / Connector Type | RJ45, 5 Pin Phoenix |
| Battery Included | Yes |
| Fixings Included | Yes |
| Screws Included | No |
| Electrical Safety Class | III |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -10℃ to 50℃ |
| Dimensions LxWxH (mm) | 86x10x110 |
| Brand | Nicolaudie |
| Certification | EMC - 2014/30/EU |
| Family Name | DMX Nicolaudie |
