Nicolaudie | DMX | STICK-CW4 | LED Wall Plate | 1024 Channel | 1 Zone

Specifications:

• Input Voltage: 5-15V DC
• Input Current: Max. 0.6A
• Output Signal: DMX 512 (x2)
• Output DMX Channels: 1024
• Control Zones: 1 Zone
• Dimming Range: Adjustable via touch-sensitive wheel

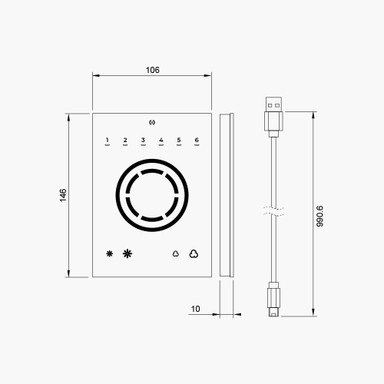

• Dimensions (mm): 146L x 106W x 11H
• Warranty: 2 Years

Information:

The STICK-CW4 is a sleek, touch-sensitive DMX lighting controller designed for architectural installations and advanced lighting control. The unit features 12 touch-sensitive buttons for controlling scenes and a circular touch-sensitive color wheel for accurate color selection. It supports 1024 DMX channels and can control up to 340 RGB fixtures across 6 zones. The controller is Wi-Fi enabled, allowing for remote control via a smartphone or tablet, and supports clock and calendar scheduling with sunrise/sunset triggers.

The controller can store up to 36 dynamic or static scenes and is programmable via USB on PC or Mac. It also features 8 dry contact trigger ports for integrating external systems.

Installation:

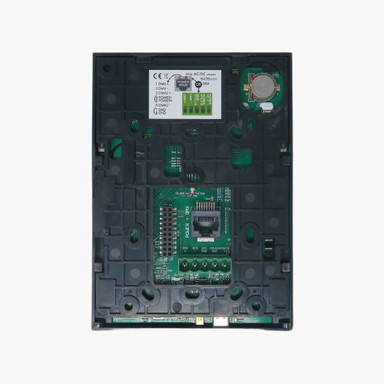

The STICK-CW4 can be mounted into a single or double-gang wall socket. It requires a 5-15V DC power supply and connects to DMX receivers via DMX cables. The front panel is mounted by sliding it into place after connecting the power and DMX cables. Care must be taken to avoid interference with the Wi-Fi aerial during installation.

Required Products:

To properly operate the STICK-CW4 controller, the following items are required:

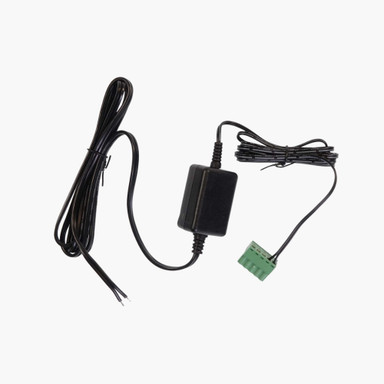

• Power Supply:
  • 5-10V DC ACDC adapter (POWER4M recommended)
• Optional Accessories:
  • RJ2BLOCK RJ45 to connector block converter for Power+DMX socket
