Nicolaudie | DMX | STICK-DE3 | LED Wall Plate | 1024 Channel | 10 Zones

Specifications:

• Input Voltage: 5-15V DC
• Output Signal: DMX 512 (x2)
• Output DMX Channels: 1024
• Control Zones: 10 Zones
• Dimming Range: Adjustable dimmer using circular palette

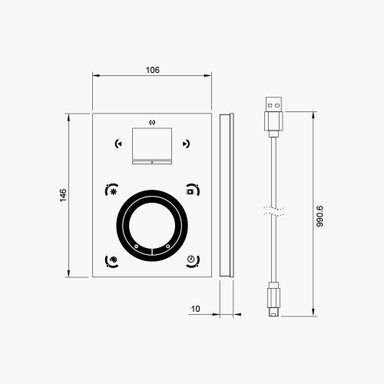

• Dimensions (mm): 146L x 106W x 11H
• Warranty: 2 Years

Information:

The STICK-DE3 is a premium DMX controller with a sleek glass design that protrudes only 11mm from the wall, offering a modern aesthetic. It features a graphical color display that shows the selected environment, with touch-sensitive buttons and a circular palette for precise color selection. The controller supports up to 1024 DMX channels, making it capable of controlling up to 340 RGB fixtures. Multi-zone control is enabled with up to 500 scenes available across 10 zones, and the device is programmable via USB and Ethernet, supporting PC, Mac, iOS, and Android platforms.

This controller also includes advanced connectivity options such as RS232, dry contact ports, and an Infrared input, making it suitable for complex lighting setups in demanding environments. It is available in black and white glass finishes and supports OEM customization for tailored designs.

Installation:

The STICK-DE3 can be mounted into a single or double gang wall socket and is designed for indoor installation. The device requires a 5-15V DC power supply and connects to lighting receivers through DMX cables. Installation involves mounting the backplate to the wall, connecting the necessary cables, and securing the front panel. The controller should be securely mounted to avoid interference with the touch-sensitive buttons.

Package Contains:

This list of products below are supplied:

• DMX LED Wall Plate
• USB Cable
• Micro SD Memory Card

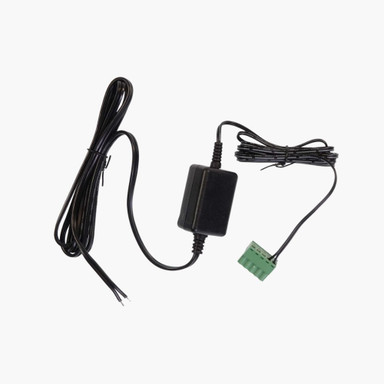

• DC7V Power Adapter
