Nicolaudie | DMX | STICK-KE2 | LED Wall Plate | 1024 Channel | 5 Zones

Specifications:

• Input Voltage: 6-9V DC
• Input Current: Max. 0.6A
• Output Signal: DMX 512 (x2)
• Output DMX Channels: 1024
• Control Zones: 5 Zones
• Dimming Range: Adjustable via touch-sensitive fader

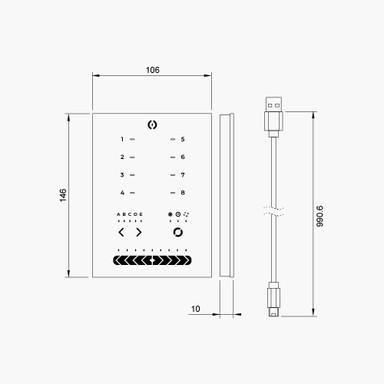

• Dimensions (mm): 146L x 106W x 11H
• Warranty: 2 Years

Information:

The STICK-KE2 is a smart touch-sensitive DMX lighting controller designed for modern and advanced lighting control needs. It features 8 touch-sensitive buttons to control up to 200 lighting scenes and a horizontal touch-sensitive fader for precise control over dimming, speed, and color. The unit supports 1024 DMX channels, making it capable of controlling up to 340 RGB fixtures across 5 zones.

The controller is programmable through PC, Mac, smartphones, or tablets and can be controlled remotely via USB and Ethernet. Additional features include clock and calendar functions with sunrise/sunset triggers, as well as RS232 and dry contact ports for advanced integration with other control systems. It is available in a sleek black glass design.

Installation:

The STICK-KE2 is designed for indoor installation and can be mounted into a single or double gang wall socket. The device requires a 6-9V DC power supply and connects to DMX receivers via DMX cables. Installation involves mounting the interface on the wall, connecting the power and DMX cables, and securing the front panel.

Package Contains:

This list of products below are supplied:

• DMX LED Wall Plate
• USB Cable
• Micro SD Memory Card

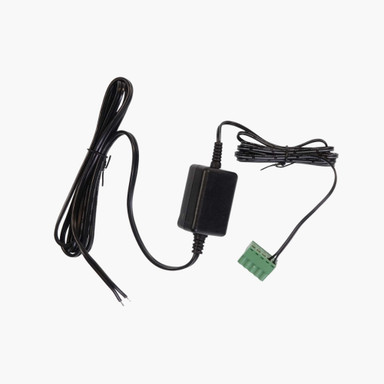

• DC7V Power Adapter
