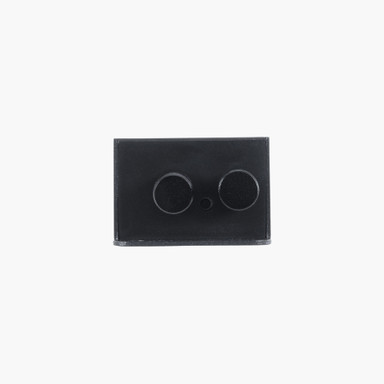

Tagra | RF 2.4GHz | 12-24V | In Line | LED Dimmer | 1 Channel | 20A | Single Colour

Specifications:

• Input Voltage: 12-24V DC
• Input Current: 20.5A
• Output Voltage: 12-24V DC
• Output Current: 20A @ 250/500/1K/2K Hz | 15A @ 4K/8K Hz | 10A @ 16KHz
• Output Power: 240-480W @ 250/500/1K/2K Hz | 180-360W @ 4K/8K Hz | 144-288W @ 16KHz
• Dimming Range: 0-100%
• Dimensions (mm): 90L x 40W x 28H
• Warranty: 5 Years

Information:

This single colour inline dimmer is perfect for adjusting the brightness of your LED strip light. It features 0-100% smooth dimming capability and an digital numeric display for accurate adjustment. Rotate the control knobs to change brightness and breathing fade speed (pulsing effect).

Can be matched with a single colour 2.4GHz remote for wireless control up to 30 metres away and features a selectable PWM frequency with seven options allowing you to choose the frequency that matches your LED strip light. High load current of up to 20.5A.

Manufactured from high quality materials and components and comes with a 5 year warranty as standard. Also features built-in protection including over-heat and short circuit protection which recovers automatically.

Installation:

Available in IP20 making it suitable for indoor installation. We recommend installing our LED controllers using the mounting points located on the product. Make sure to install the product onto a smooth and clean surface and in a well ventilated area to reduce any chance of over-heating and to prolong the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

• 12-24V LED Driver
