Syndeo by Tagra | Joinery LED Neon Flex | Mini 4 | 4x10m | 24V | IP65 | 8Wp/m | 5 Metre Kit

Specifications

• Plug & Play
• Application: Indoor / Outdoor (Permanent)
• Bend Direction: Vertical
• Voltage: 24V DC
• Power Consumption: 7.9W/m
• IP Rating: IP65

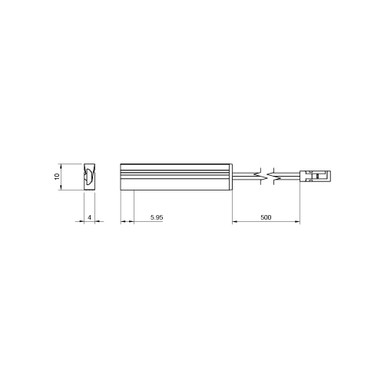

• Cut Points: 5.95mm

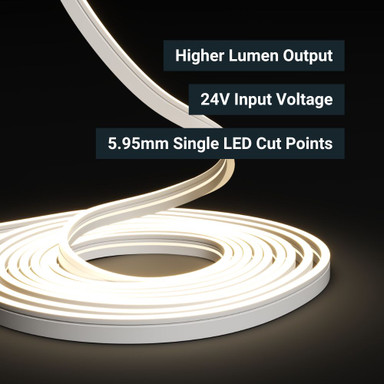

• Light Output: Up to 281 lm/m
• CRI: >90
• SDCM: <3
• Max Run Length: 5m (Single Power Feed)
• Available Colour Temperatures: 2700K, 3000K

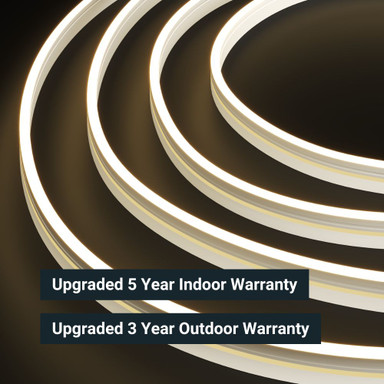

• Warranty: 5 Years (Indoor) / 3 Years (Outdoor)

Introducing the New & Improved Syndeo Joinery LED Neon Flex – Mini

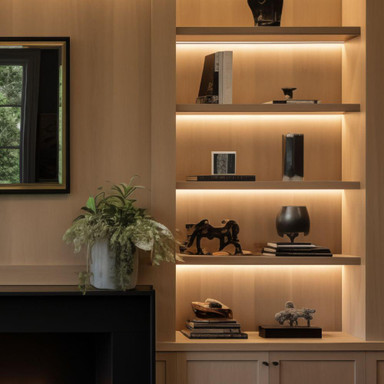

This next-generation Syndeo Joinery LED Neon Flex Mini 4 is a slim lighting solution designed specifically for fine detail applications. Perfect for joinery, cabinetry, furniture, hospitality, signage, and retail displays, this upgraded specification delivers greater efficiency, brighter light output, and superior reliability.

With ultra-precise 5.95mm cut points (reduced from 17.86mm), the Mini 4 offers almost cut-anywhere flexibility, ensuring bespoke installations are easier than ever. High CRI >90 and SDCM <3 provide consistent, natural illumination, while the IP65 rating ensures durability indoors and outdoors. Backed by a 5-year indoor and 3-year outdoor warranty, the Syndeo Mini 4 is designed for medium to long-term installations without compromise.

Key Features

• Plug & Play
• Compact 4x10mm – perfect for joinery, cabinetry, and fine detailing
• High-efficiency spec – brighter and more energy-efficient than previous versions
• 5.95mm cut points – reduced from 17.86mm for highly flexible installation
• Excellent light quality – CRI >90 and SDCM <3 for professional results
• Up to 281 lumens per metre
• Durable, professional-grade design for joinery and mid-level façades

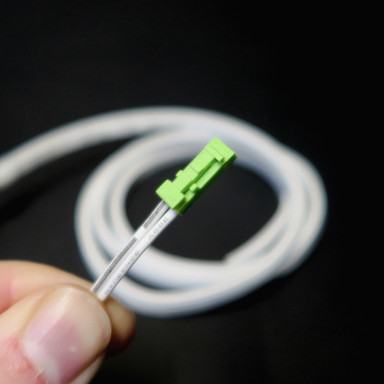

• Syndeo Plug & Play tails at both ends for fast connection with Syndeo drivers (sold separately)
• IP65 rating – suitable for both indoor and outdoor use
• 5m max run length (single power feed)

Kit Contents

• 5 Metre Reel with 500mm Syndeo cable on both ends
• 1x Extra 500mm Cable
• 2x Pairs of End Caps
• Mounting Brackets
• Silicone Glue
• User Manual

Installation Guidance

This product must be installed by a suitably competent person and in accordance with IEE Wiring Regulations and Building Regulations. Please consult the installation manual before starting work. For best results, use mounting tracks or brackets to ensure secure placement.

The Syndeo Plug & Play connection system allows quick installation when paired with a Syndeo driver (sold separately), enabling multiple lengths to be connected without complex wiring or specialist tools.

Required Products

• A compatible 24V LED Driver
• Mounting Accessories (Aluminium Channel or Mounting Clips)
• Spare End Caps (if needed)
