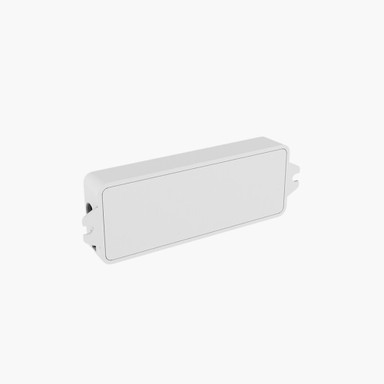

Tagra | Zigbee, RF 2.4GHz & Wi-Fi | 12-24V | LED Controller | 5 Channel | Single Colour - RGB+CCT | IP20
TAG-ZB12243A
£30.00 Inc. VAT
Key Features
- Input voltage (Min/Max): 12V – 24V
- Colour control type: Single Colour, CCT Tunable White, RGB, RGBW, RGBCCT
- Control signal - input: Zigbee, RF 2.4GHz
- Dimming range (Min/Max): 0% – 100%
- Control distance barrier free: 30m
- Number of control channels: 5
- Max output current per channel: 3A
- IP Rating: 20
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 12-24V DC
- Input Current: Max. 15.5A
- Output Current: 3A per channel @ 12-24V
- Output Power: 5 x (36-72)W
- Input Signal: ZigBee + RF 2.4GHz
- Control Distance: 30 metres unobstructed
- Dimming Range: 0-100%
- IP Rating: IP20
- Dimensions (mm): 120L x 43W x 27H
- Warranty: 5 Years
Information:
Introducing our Tagra 12-24V ZigBee & RF (Tuya App) LED Controller which features a 5 in 1 function with the capability to be used for single colour, RGB, RGB+W and RGB+CCT colour temperature strip lights. An optional DC power socket allows for easy wiring to a 12-24V DC power supply.
Featuring ZigBee signal control allows for long distance connectivity between other Zigbee devices on a secure network. Use with our ZigBee LED Gateway to realize remote control. In addition, use with the Tuya App to control multiple ZigBee products synchronously.
Tuya Smart App cloud control allows for a multitude of control options including on/off, RGB colour, colour temperature and brightness adjustment, delay turn on/off, timer run, scene editing and music play function. Also includes Philips HUE and voice control compatibility with Amazon and Google.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a 12-24V DC power supply. Features mounting locations for mounting to a surface. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
For ZigBee control:
- ZigBee LED Gateway
Product Specification
| Warranty (Years) | 5 |
| Control Distance No Obstruction (m) | 30 |
| Control Signal - Input | RF 2.4GHz |
| Dimmable | Yes |
| DIP Switch | No |
| Max. No. of Remotes | 30 |
| Rated Life (Hours) | 50000 |
| Application Environment | DOMESTIC, HOSPITALITY |
| Body Material | PC PLASTIC |
| Ingress Protection (IP) | 20 |
| Mounting Type | WALL MOUNTING |
| Input Cross-Section of Conductors for Terminals (mm²) | 1.5 |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | BARE WIRE |
| Input Voltage Min. - Max (V) | 12-24V |
| Product Height (mm) | 20 |
| Depth (mm) | 114 |
| Product Weight (g) | 54 |
| Width (mm) | 38 |
| Load Min. (W) | 0 |
| Max. Output Current Per Channel (A) | 3 |
| Output Current Max. (A) | 15.5 |
| Output Current Type | DC |
| Power Cord Included | No |
| Screws Included | No |
| Over Current Protection | No |
| Over Temperature Protection | Yes |
| Over Voltage Protection | No |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | No |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -30℃ to 55℃ |

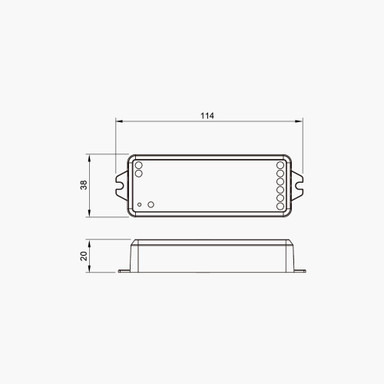

| Dimensions LxWxH (mm) | 114x38x20 |
| Brand | Tagra |
| Body Colour | White |
| Number of Control Channels | 5 |
| Family Name | ZigBee Control |
| Output Voltage Min. - Max. (V) | 12-24V |
