Tagra | 0/1-10V & RF 2.4GHz | 12-48V | LED Dimmer | 1 Channel | 20A | Single Colour
TAG-20A0-10VDIMCTR
£33.60 Inc. VAT
Key Features
- Input voltage (Min/Max): 12 V – 48 V
- Colour control type: Single Colour
- Control signal - output: 0/1-10V
- Dimming range (Min/Max): 0 % – 100 %
- Number of control channels: 1
- Max output current per channel: 20 A
- IP Rating: 20
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 12-48V DC
- Max. Power: 240W @ 12V | 480W @ 24V | 540W @ 36V | 720W @ 48V
- Input Current: 20.5A
- Input Signal: RF 2.4GHz | 0-10V | Push-Dim
Information:
Discover precision lighting control with our 3-in-1 LED Dimmer. The 3-in-1 feature allows you to control your single colour lighting in various ways. As an added feature, you can also use the RF, 0-10V and Push-Dim control at the same time, allowing you to create a wide variety of installations. Smooth dimming control for 0-100% with no flashing or flickering.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard. Comes with over-heat, over-load and short circuit protection built in with an auto-recovery feature.
Installation:
Available in IP20 making it suitable for indoor installation. Can be installed onto a surface using the fixing points of the product. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 12-48V LED Driver
- 12V, 24V or 48V Single Colour LED Strip Light
- RF 2.4GHz Remote, 0-10V Dimmer or Push Dimmer
Product Specification
| Warranty (Years) | 5 |
| Control Distance No Obstruction (m) | 15 |
| Control Signal - Input | RF 2.4GHz + 0/1-10V + Push Dim |
| Dimmable | Yes |
| Max. No. of Remotes | 10 |
| Remote Included | No |
| Current Max. Rated (A) | 20 |
| Application Environment | HOSPITALITY, DOMESTIC |
| Body Finish | METAL |
| Body Material | ALU |
| Ingress Protection (IP) | 20 |
| Storage Humidity Max. (°C) | 75 |
| Working Humidity Max. (°C) | 93 |
| Input Control Connection Type | Screw |
| Input Current Max. (A) | 20.5 |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | SCREW |
| Input Voltage Min. - Max (V) | 12-48V |
| Body Colour | Black |
| Product Height (mm) | 25 |
| Depth (mm) | 107 |
| Product Weight (g) | 254 |
| Width (mm) | 75 |
| Constant Voltage / Constant Current | CV |
| Max. Output Current Per Channel (A) | 20 |
| Number of Control Channels | 1 |
| Output Connector Type | SCREW |
| Output Current Max. (A) | 20 |
| Output Current Max. @ 12V (A) | 20 |
| Output Current Max. @ 24V (A) | 20 |
| Output Current Max. @ 48V (A) | 15 |
| Output Current Type | DC |
| Output Terminal / Connector Type | Screw |
| Screws Included | Yes |
| Electrical Safety Class | III |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -30℃ to 55℃ |

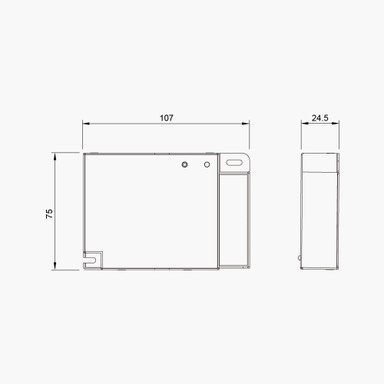

| Dimensions LxWxH (mm) | 107x75x25 |
| Brand | Tagra |
| Family Name | 0/1-10V Control |
| Output Voltage Min. - Max. (V) | 12-48V |
| Control Signal - Output | 0/1-10V |
