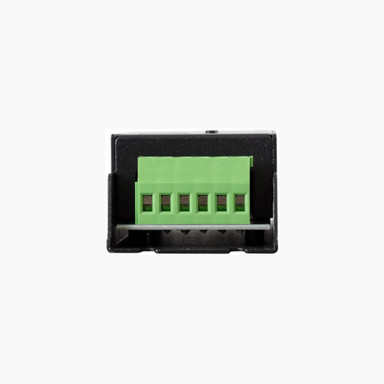

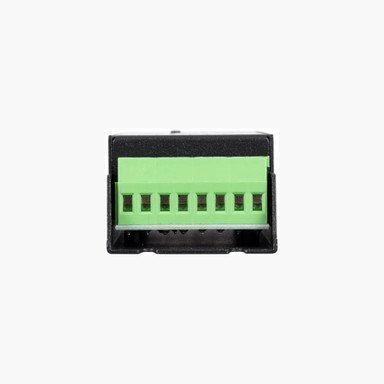

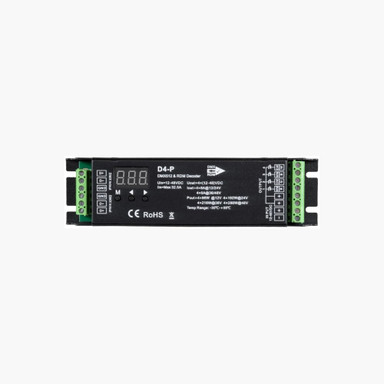

Tagra | DMX | 12-48V | LED Decoder | 4 Channel | 8A | RGB+W | IP20
4CH8ADMXDEC-GT
£39.60 Inc. VAT
Key Features
- Control signal - output: DMX
- Input voltage (Min/Max): 12 V – 48 V
- Colour control type: Single Colour, CCT Tunable White, RGB, RGBW
- Number of control channels: 4
- Max output current per channel: 8 A
- IP Rating: 20
- Screen type: 7-segment LED display
- Input terminal / connector type: Screw Terminal
- Output terminal / connector type: Screw Terminal
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Signal: DMX512
- Input Voltage: 12V~48V DC
- Input Current: 32.5A
- Output Voltage: 4 x (12-48)VDC
- Output Current: 4x 8A @ 12/24V | 4x 6A @ 36/48V
- Output Power: 4x 96W @ 12V | 4x 192W @ 24V | 4x 216W @ 36V | 4x 288W @ 48V
- Output Type: Constant Voltage
- Dimensions (mm): 175L x 46W x 32H
- Warranty: 5 Years
Information:
Featuring a 4 channel output this DMX Decoder is ideal for controlling RGB+W LED strip lights but also suitable for single colour and CCT LED strip lights. Requires a DMX512 input signal to operate which can be connected to the decoder via green terminal DMX signal ports.
A digital numeric display screen helps you set your DMX address via the press of a button. Choose between logarithmic or linear dimming curves and also adjust the dimming increments from 8 bit (246 levels) to 16 bit (65536 levels). Select your desired PWM frequency from the seven options available.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard. Also features built-in protection including over-heat, over-load and short circuit protection which recovers automatically.
Installation:
Available in IP20 making it suitable for indoor installation. We recommend installing our LED controllers using the mounting points located on the product. Make sure to install the product onto a smooth and clean surface and in a well ventilated area to reduce any chance of over-heating and to prolong the life of the product.
Required Products:
The list of products below are required in order to properly operate this product:
- DMX Master Control Signal
- 12-48V LED Driver
Product Specification
| Adjustable PWM | Yes |
| Warranty (Years) | 5 |
| Control Signal - Output | DMX |
| Dimming Type | PWM |
| DIP Switch | No |
| Screen Type | 7-segment LED display |
| Body Finish | METAL |
| Body Material | METAL |
| Ingress Protection (IP) | 20 |
| Storage Humidity Max. (°C) | 75 |
| Working Humidity Max. (°C) | 93 |
| Input Control Connection Type | Screw |
| Input Current Max. (A) | 32.5 |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | Screw Terminal |
| Input Voltage Min. - Max (V) | 12-48V |
| Body Colour | Black |
| Product Height (mm) | 32 |
| Depth (mm) | 175 |
| Product Weight (g) | 290 |
| Width (mm) | 46 |
| SD Card Slot | No |
| Constant Voltage / Constant Current | CV |
| Max. Output Current Per Channel (A) | 8 |
| Number of Control Channels | 4 |
| Output Current Max. (A) | 32 |
| Output Current Max. @ 12V (A) | 32 |
| Output Current Max. @ 24V (A) | 32 |
| Output Current Max. @ 48V (A) | 24 |
| Output Current Type | DC |
| Output Terminal / Connector Type | Screw Terminal |
| Output Voltage Min. - Max. (V) | 12-48V |
| Electrical Safety Class | III |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Short Circuit Protection | Yes |
| Operating Temperature Min. - Max. (°C) | -30℃ to 55℃ |
| Dimensions LxWxH (mm) | 175x46x32 |
| Brand | Tagra |
| Family Name | DMX |
