Tagra | DMX | 12-48V | LED Decoder | 5 Channel | 4A | RGB+CCT | IP20

Specifications:

• Input Signal: DMX512
• Input Voltage: 12V~48V DC
• Input Current: 20.5A
• Output Voltage: 5 x (12-48)VDC
• Output Current: 5x 4A @ 12-48V
• Output Power: 5x 48-192W @ 12-48V
• Output Type: Constant Voltage

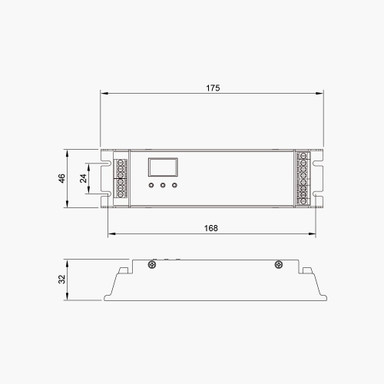

• Dimensions (mm): 175L x 46W x 32H
• Warranty: 5 Years

Information:

Featuring a 5 channel output this DMX Decoder is ideal for controlling RGB+CCT LED strip lights but also suitable for RGB, RGB+W, CCT and single colour LED strip lights. Requires a DMX512 input signal to operate which can be connected to the decoder via the green terminal DMX signal ports.

A digital numeric display screen helps you set your DMX address via the press of a button. Choose between logarithmic or linear dimming curves and also adjust the dimming increments from 8 bit (246 levels) to 16 bit (65536 levels). Select your desired PWM frequency from the seven options available.

Manufactured from high quality materials and components and comes with a 5 year warranty as standard. Also features built-in protection including over-heat, over-load and short circuit protection which recovers automatically.

Installation:

Available in IP20 making it suitable for indoor installation. We recommend installing our LED controllers using the mounting points located on the product. Make sure to install the product onto a smooth and clean surface and in a well ventilated area to reduce any chance of over-heating and to prolong the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

• DMX Master Control Signal
• 12-48V LED Driver
