Products Tested In-House

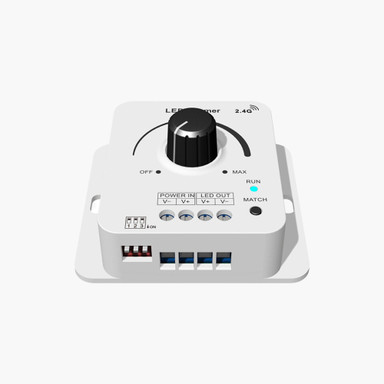

Tagra | RF 2.4GHz | 12-48V | Rotary | LED Dimmer | 1 Channel | 8.5A | Single Colour
TAG-8ADIM
£12.00 Inc. VAT
Key Features
- Input Voltage (Min/Max): 12 V – 48 V
- Colour Control Type: Single Colour
- Control Signal - Output: PWM
- Dimming Range (Min/Max): 0 % – 100 %
- Number of Control Channels: 1
- Max Output Current per Channel: 8.5 A
- IP Rating: 20
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 12-48V DC
- Input Current: 8.5A
- Output Voltage: 12-48V DC
- Output Current: 8A @ 12-24V | 6A @ 36-48V
- Output Power: 96W @ 12V | 192W @ 24V | 216W @ 36V | 288W @ 48V
- Control Distance: 30 metres (unobstructed)
- Dimming Range: 0-100%
- Dimensions (mm): 66L x 59W x 32H
- Warranty: 5 Years
Information:
Introducing our Single Colour Constant Voltage LED Rotary Dimmer. It is capable of 0-100% smooth dimming without any flashing. With an input votlage of 12-48V DC it is usable on range of LED installations.
Features compatibility with RF 2.4GHz single or muti-zone remotes to allow you to control the lighting from a distance.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:
Available in IP20 making it suitable for indoor installation. Features mounting points on both sides for easy wall mounting. We recommend this product be installed by a qualified electrician. Fixings not included.
Required Products:
The list of products below are required in order to properly operate this product:
- 12-48V LED Driver
- Single Colour LED Strip Light
Product Specification
| Warranty (Years) | 5 |
| Control Distance No Obstruction (m) | 30 |
| DIP Switch | Yes |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Storage Humidity Max. (°C) | 75 |
| Working Humidity Max. (°C) | 93 |
| Input Control Connection Type | Screw |
| Input Current Max. (A) | 8.5 |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | SCREW |
| Number of Input Terminals | 2 |
| Input Voltage Min. - Max (V) | 12-48V |
| Body Colour | White |
| Product Height (mm) | 32 |
| Depth (mm) | 59 |
| Product Weight (g) | 55 |
| Width (mm) | 66 |
| Constant Voltage / Constant Current | CV |
| Number of Control Channels | 1 |
| Number of Output Terminals | 2 |
| Output Current Max. (A) | 8 |
| Output Current Max. @ 12V (A) | 8 |
| Output Current Max. @ 24V (A) | 8 |
| Output Current Max. @ 48V (A) | 6 |
| Output Current Type | DC |
| Output Terminal / Connector Type | SCREW |
| Output Voltage Min. - Max. (V) | 12-48V |
| Electrical Safety Class | III |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -20℃ to -2℃ |
| Dimensions LxWxH (mm) | 59x66x32 |
| Brand | Tagra |
| Max. Output Current Per Channel (A) | 8.5 |
| Family Name | In Line |
| Control Signal - Output | PWM |
