Tagra | Pixel LED Strip Light | 126 LEDs p/m | 18 pixels p/m | 24V | IP20 | 8Wp/m | 5M Reel

Specifications:

• Voltage: 24V
• Max. Power: 8.0W/m
• LEDs per metre: 126 LEDs
• Pixels per metre: 6 Pixels
• Cut Points: 166.6mm
• CRI: >80
• Beam Angle: 120°
• PCB Weight: 3oz
• Lumens: Up to 707lm/m
• Warranty: 2 Years

Information:

Introducing our Single Colour Digital Pixel LED Strip Light. Pair with our Dual Function Pixel LED Controller to achieve light chasing effects. Featuring 120 LEDs per metre and 6 Pixels per metre, this LED strip light has 6 controllable sections within a 1 metre length. Compatible with WS2811 pixel protocol which is commonly used in the pixel lighting industry. A 120° beam angle and brightness of up to 707lm per metre make it a perfect for a variety of installations.

Part of the Toning Digital Pixel range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

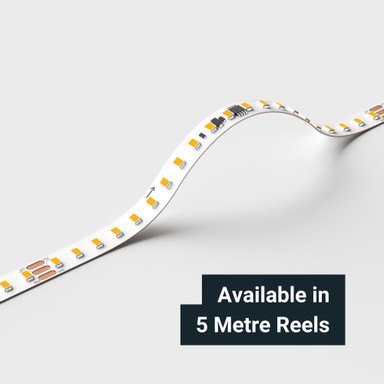

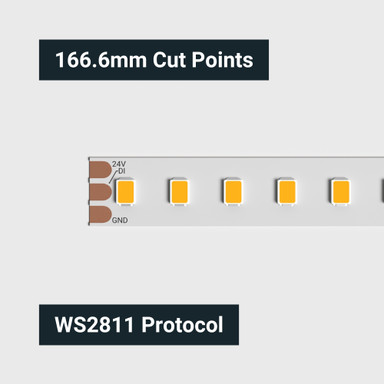

Available in both Warm White 3000K and Cool White 6000K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 166.6mm intervals.

Our Toning Digital Pixel LED Strip Light is manufactured using high quality materials and components and comes with a 2 year warranty as standard.

Installation:

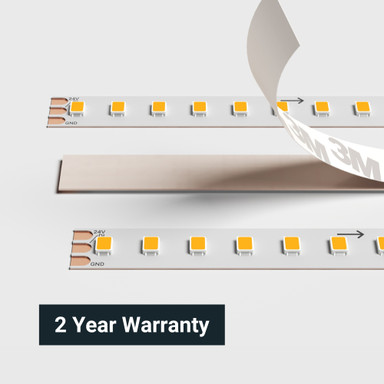

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

• 24V LED Driver
• 24V Digital Pixel LED Controller
