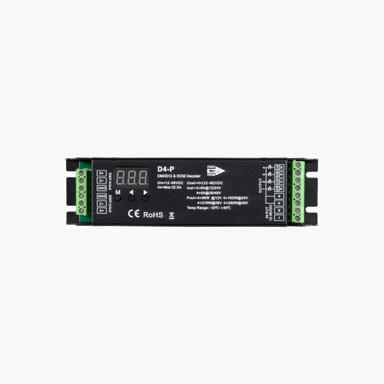

Tagra | DMX | 12-48V | LED Decoder | 4 Channel | 8A | RGB+W | IP20 (new)

Specifications:

• Input Signal: DMX512
• Input Voltage: 12V~48V DC
• Input Current: 32.5A
• Output Voltage: 4 x (12-48)VDC
• Output Current: 4x 8A @ 12/24V | 4x 6A @ 36/48V
• Output Power: 4x 96W @ 12V | 4x 192W @ 24V | 4x 216W @ 36V | 4x 288W @ 48V
• Output Type: Constant Voltage

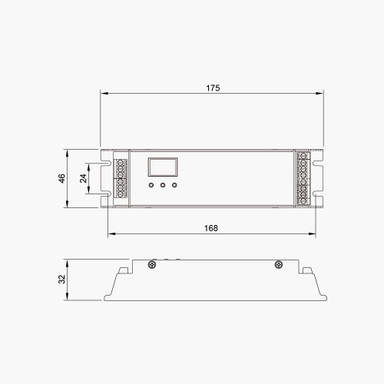

• Dimensions (mm): 175L x 46W x 32H
• Warranty: 5 Years

Information:

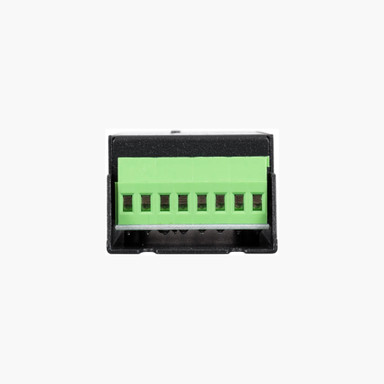

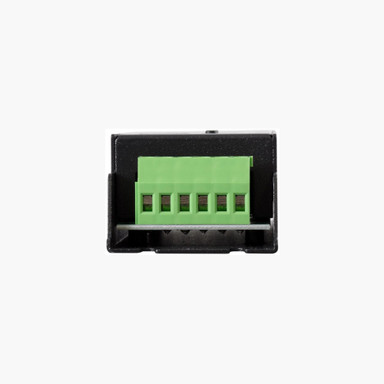

Featuring a 4 channel output this DMX Decoder is ideal for controlling RGB+W LED strip lights but also suitable for single colour and CCT LED strip lights. Requires a DMX512 input signal to operate which can be connected to the decoder via green terminal DMX signal ports.

A digital numeric display screen helps you set your DMX address via the press of a button. Choose between logarithmic or linear dimming curves and also adjust the dimming increments from 8 bit (256 levels) to 16 bit (65536 levels). Choose your desired PWM frequency, with eight selectable options available up to 32 kHz.

Manufactured from high quality materials and components and comes with a 5 year warranty as standard. Also features built-in protection including over-heat, over-load and short circuit protection which recovers automatically.

Installation:

Available in IP20 making it suitable for indoor installation. We recommend installing our LED controllers using the mounting points located on the product. Make sure to install the product onto a smooth and clean surface and in a well ventilated area to reduce any chance of over-heating and to prolong the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

• DMX Master Control Signal
• 12-48V LED Driver
