Tagra | Essential COB LED Strip Light | 320 LEDs p/m | 24V | IP20 | 8Wp/m | 5 & 50M Reel
EC24
From £33.60 Inc. VAT
Key Features
- Product Width: 8
- Lm/m (up to): 720 Lm/m
- Lm/W (up to): 90 Lm/W
- CRI: 90+
- Lightsource SDCM: ≤5
- Run Length (max): 5 m
- Available Colours: 2700K, 3000K, 4000K, 6500K
- Warranty: 3 Years
For LDT files, please sign in
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 8.0W/m

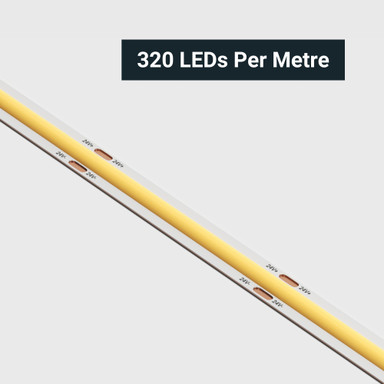

- LEDs per metre: 320 LEDs

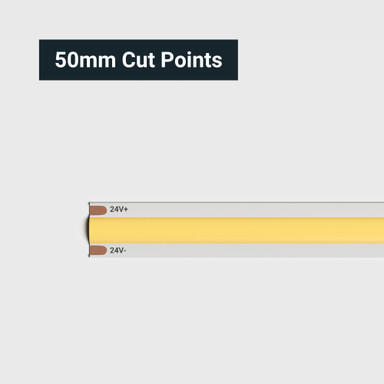

- Cut Points: 50mm
- Beam Angle: 140°
- SDCM: <5
- PCB Weight: 2oz
- Lumens: Up to 650lm/m
- Warranty: 3 Years
Information:

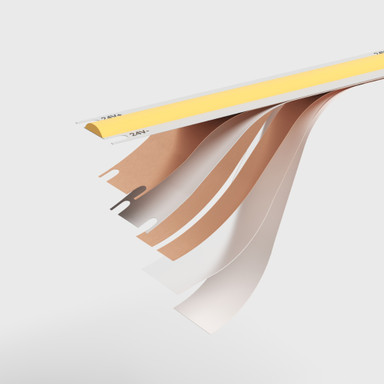

Introducing our Essential Series COB LED strip light, available in various color temperatures (2700K, 3000K, 4000K, and 6500K). Featuring a continuous phosphorus coating ensures the LED chips produce an uninterrupted linear light. This COB LED strip light offers seamless, uniform lighting with no dark spots, making it ideal for a wide range of applications. The strip light is highly flexible with a beam angle of 140° and provides up to 650 lumens per metre.

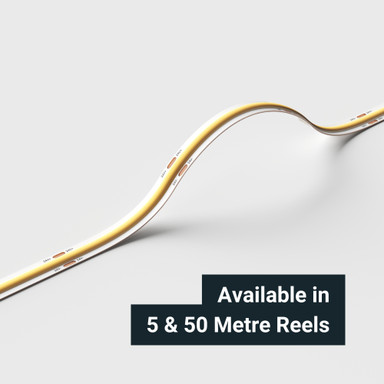

The product is available in both 5 metre and 50 metre reels and can be cut at 50mm increments, making it customizable for various installations. With a high CRI of >90 and an SDCM of <5, this LED strip is ideal for cost-effective long length seamless lighting.
It comes with 500mm tinned end cables (5 metre reel) for easy soldering and installation. The product is IP20 rated, making it suitable for indoor use, and comes with an adhesive backing for simple installation on smooth surfaces.
Installation:
The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces. We recommend installing the LED strip in an aluminum profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to properly operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 3 |
| Dimmable | Yes |
| Energy Efficiency Class | G |
| Rated Life (Hours) | 36000 |
| Switch Cycles | 10000 |
| Current Max. Rated (A) | 0.35 |
| Max. Run Length (m) | 5 |
| Max. Wattage @ Max. Run Length (W) | 400 |
| Anti-Yellowing | No |
| Application Environment | DOMESTIC, COMMERICAL |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | INTERIOR |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| UV Resistant | No |
| Mains or Non-Mains | NON-MAINS |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | No |
| Cable Length (m) | 500 |
| Cut Points (mm) | 50 |
| LED Module Replaceable | false |
| Min. Bend Radius (mm) | 30 |
| PCB Type | FLEXIBLE |
| Product Height (mm) | 2 |

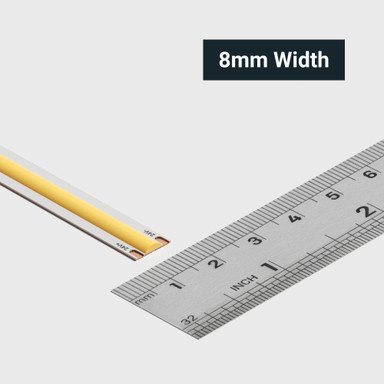

| Width (mm) | 8 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 140 |
| CRI | 90 |
| SDCM | 5 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Brand | Tagra |
| Family Name | Essential COB |
| Cable Sheath Material | PVC |
| Anti-Glare Shield | No |
| Colour-Tuneable Light Source | No |
| Copper Foil Weight (oz) | 2 |
| Entry Cable Direction | End |
| LEDs Per Metre (LEDs/m) | 320 |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Body Colour | White |
| Bend Direction | Vertical |
| Bin Number | 2 |
| Cable Length (mm) | 500 |
