Tagra | Pixel LED Strip Light | 120 LEDs p/m | 20 pixels p/m | 24V | IP20 | 36W/m | RGB+W | 5M Reel

Specifications:

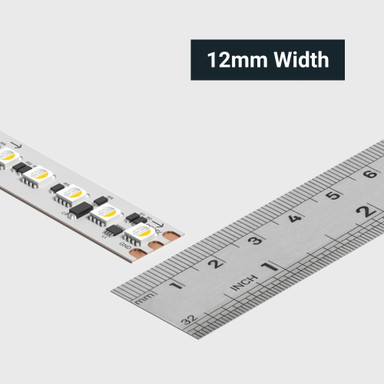

• Product Width: 12mm
• IC Type: WS2814
• Lm/m (up to): 1153Lm/m
• Lm/W (up to): 43Lm/W
• CRI: 80+
• Lightsource SDCM: ≤5
• Run Length (Max): 5m
• Available Colours: 3000K, 4000K, 6000K
• Warranty: 2 Years

Information:

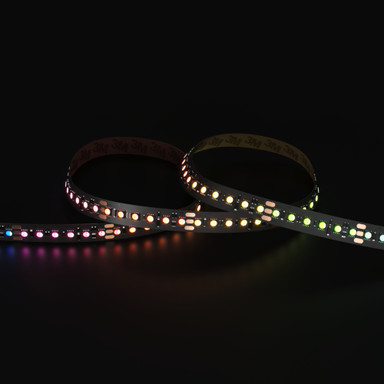

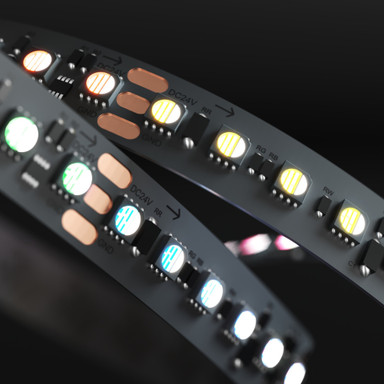

Introducing our Colour Changing RGB+W Continuous Digital Pixel SMD LED Strip Light. Pair with our Digital Pixel LED Controller to achieve dynamic light chasing and pixel lighting effects.

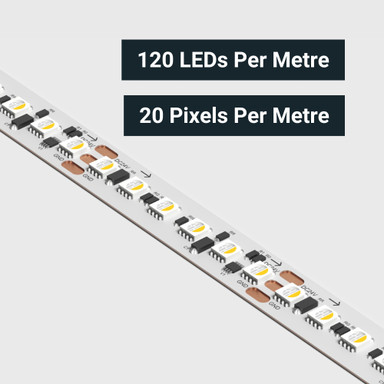

Featuring 120 SMD LEDs per metre and 20 pixels per metre, this strip delivers bright, vibrant colour mixing alongside dedicated white light options. Compatible with the WS2814 pixel protocol, which is widely used in the pixel lighting industry, it allows precise digital control of each pixel for creative lighting displays.With a 140° beam angle and brightness of up to 1153 lumens per metre, this strip is ideal for a wide range of installations including feature lighting, architectural details, and decorative lighting applications.

Part of the Toning Digital Pixel range, the strip features 2 × 500mm pre-attached cables with tinned ends, allowing for quick and easy soldering during installation. When powered from one end, the strip can run up to 5 metres.

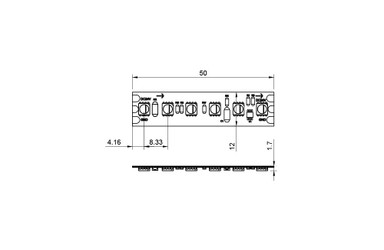

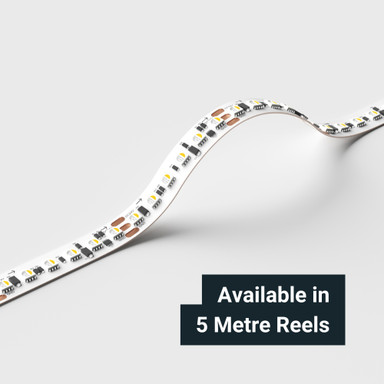

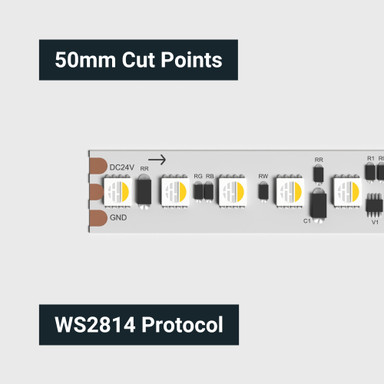

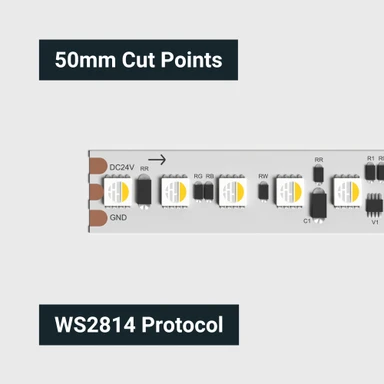

Available in RGB+3000K, RGB+4000K, and RGB+6000K options. Supplied as a 5 metre reel as standard and can be cut to your required length using the cut points located at 50mm intervals.

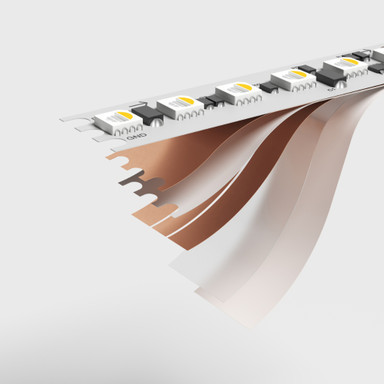

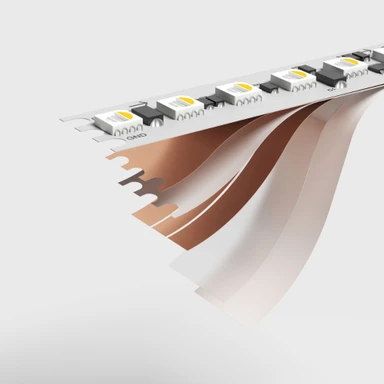

Manufactured using high-quality materials and components, our Toning Digital Pixel SMD LED Strip Light comes with a 2-year warranty as standard.

Installation:

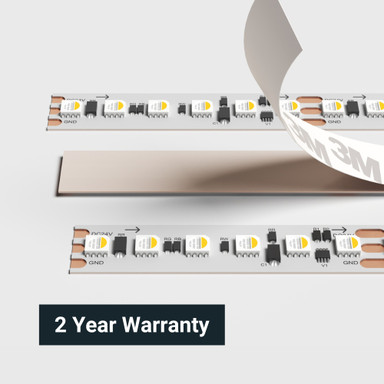

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

• 24V LED Driver
• 24V Digital Pixel LED Controller
