Tagra | Pro Pixel LED Neon Flex | Dual 20 | 20x20mm | RGB+W | 24V | IP67 | 15.4W/m | 10M Kit
TP24-N2020RGBW
From £660.00 Inc. VAT
Key Features

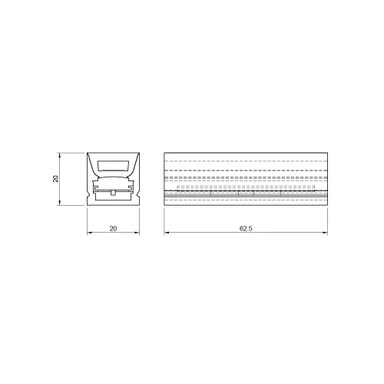

- Product Dimensions (mm): L10000xW20xH20.
- Bend Direction: Dual
- Pixels Per M: 16
- IC Type: UCS8904
- Run Length (Max): 5m
- Available Colours: 2700K, 3000K, 4000K, 6000K
- Warranty: 3 Years
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £4.99
- Returns14 Day Policy
Product Overview
Specifications
- Application: Façades and landscaping/ retail and hospitality ambience/display lighting
- Bend Direction: Dual Bend
- Available Colours: RGB+W (2700K, 3000K, 4000K, 6000K)
- Voltage: 24V DC
- Power Consumption: 15.4W/m
- IP Rating: IP67
- Cut Points: 62.5mm
- Lm/m (Up To): 340Lm/m
- Environment Temperature: -25℃ ~ 50℃
- Max Run Length: 5m
- Warranty: 5 Year
Introducing the Tagra Pro Pixel LED Neon Flex 20x20 RGB+W Dual Bend
Our Pro Pixel LED Neon Flex is designed for large-scale, dynamic lighting applications where maximum flexibility and output are required. Featuring a robust 20x20mm profile with dual bend capability, it allows for both horizontal and vertical bending, making it ideal for complex layouts and demanding installations.
With advanced pixel control and a dedicated white channel, this neon flex enables dynamic RGB+W lighting effects including chasing, flowing, and fully customisable sequences. It delivers a smooth, dot-free line of light, combining vibrant colour effects with functional white lighting for enhanced versatility.
Engineered for professional use, this IP67-rated solution is suitable for both indoor and outdoor installations, making it ideal for signage, façade lighting, retail environments, and architectural features where durability and visual impact are essential.
Key Features
- Pixel-controlled RGB+W output for dynamic lighting effects
- Dedicated white channel for improved tone and functional lighting
- Dual bend design for horizontal and vertical flexibility
- Smooth, dot-free light output for a professional finish
- Integrated UCS8904 IC for precise pixel control
- IP67 rated for indoor and outdoor applications
- Max run length of 5m per feed or 10m powered at both ends
- Durable construction for large-scale installations
Kit Contents
- 10 Metre Reel with 1m bottom entry cable at both ends
- 4x End Caps (2 pairs)
- 30x Mounting Clips
- 1x Extra 1M Cable
- 10ml Silicone Glue
Installation Guidance
This product must be installed by a suitably competent person and in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation guide before starting work. For best results, use compatible mounting channels or clips to ensure a secure and professional installation.
Required Products
- Compatible 24V LED Driver
- Compatible SPI / Pixel Controller
Sample Availability
50cm sample sections with pre-attached cable available upon request. Please contact our team for more information.
Product Specification
| Warranty (Years) | 3 |
| Dimmable | Yes |
| Dimming Type | PWM |
| IC Type | UCS8904 |
| Rated Life (Hours) | 50000 |
| Current Max. Rated (A) | 0.641666667 |
| Anti-Yellowing | Yes |
| Application Environment | Outdoor, Indoor |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior, Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 60 |
| UV Resistant | Yes |
| Working Humidity Max. (°C) | 80 |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Length (mm) | 1 |
| Cable Weight (AWG) | 18 |
| Chip Type | 4040 |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 62.5 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 10.41 |
| LEDs Per Metre (LEDs/m) | 96 |
| Min. Bend Radius (mm) | 100 |
| PCB Type | Flexible |
| Pixels Per Metre (Pixels/m) | 16 |
| Product Height (mm) | 20 |
| Product Weight (g) | 6210 |
| Width (mm) | 20 |
| Constant Voltage / Constant Current | CV |
| Bin Number | 1 |
| CCT (Kelvin) | 0 |
| CRI | 90 |
| SDCM | 5 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Self Adhesive (Brand & Model Number) | No-No |
| Brand | Tagra |
| Bend Direction | Dual |
| Cable Sheath Material | Silicone |
