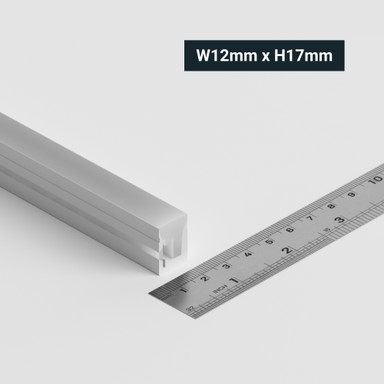

Tagra | Pro Pixel LED Neon Flex | Horizontal 12 | 12x17mm | RGB+W | 24V | IP67 | 16W/m | 10M Kit

Specifications

• Application: Façades and landscaping/ retail and hospitality ambience/display lighting
• Bend Direction: Horizontal

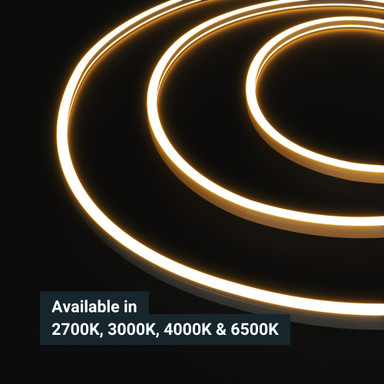

• Available Colours: RGB+W (2700K, 3000K, 4000K, 6000K)
• Voltage: 24V DC
• Power Consumption: 16W/m
• IP Rating: IP67

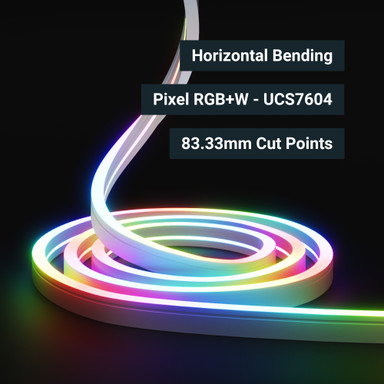

• Cut Points: 83.33mm
• Lm/m (Up To):  440Lm/m
• Environment Temperature: -25℃ ~ 50℃
• Max Run Length: 5m

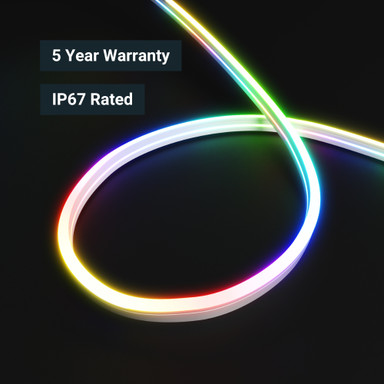

• Warranty: 5 Years

Introducing the Tagra Pro LED Pixel Neon Flex 12X17

Our Pro LED Pixel Neon Flex is a high-performance solution designed for dynamic, colour-changing lighting applications. Combining a robust 12x17mm profile with advanced pixel control, it enables the creation of eye-catching lighting effects including chasing, flowing, and fully customised RGB sequences.

Engineered for professional installations, this neon flex offers a smooth, dot-free appearance while maintaining the flexibility required for signage, architectural features, retail displays, and entertainment environments. The horizontal bend design allows for easy integration into curved and shaped layouts, delivering a clean and consistent finish.

Built for both indoor and outdoor use, this IP67-rated solution ensures reliable performance in demanding environments, making it ideal for permanent installations requiring durability, flexibility, and dynamic visual impact.

Key Features:

• Pixel-controlled RGB output for dynamic lighting effects
• Smooth, dot-free line of light for a professional finish
• Horizontal bend for flexible installation in curved designs
• Durable construction for long-term performance
• IP67 rated for indoor and outdoor applications
• Max run length of 5m per feed or 10m powered at both ends
• Supplied as a 10 metre kit for larger installations

Kit Contents:

• 10 Metre Reel with 1m bottom entry cable at both ends
• 4x End Caps (2 pairs)
• 30x Mounting Clips
• 1x Extra 1M Cable
• 10ml Silicone Glue

Installation Guidance

This product must be installed by a suitably competent person and in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation guide before starting work. For best results, use compatible mounting channels or clips to ensure a secure and professional installation.

Required Products:

Compatible 24V LED Driver

Compatible SPI / Pixel Controller

Sample Availability

50cm sample sections with pre-attached cable may be available upon request. Please contact our team for more information.
