Tagra | Pro COB LED Strip Light | 840 LEDs p/m | 24V | IP20 | 18.5Wp/m | RGB | 5 & 50M Reels
PC24-RGB
From £93.00 Inc. VAT
Key Features

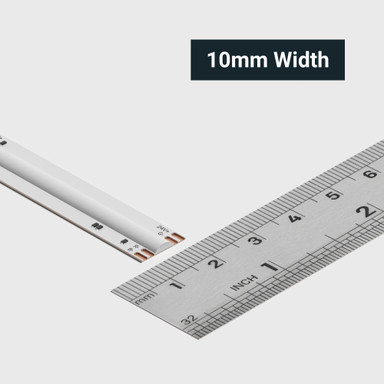

- Product Width (mm): 10 mm
- Lm/m (up to): 805 Lm/m
- Lm/W (up to): 51 Lm/W
- Run Length (Max): 5 m
- Warranty: 7 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 15.8W/m

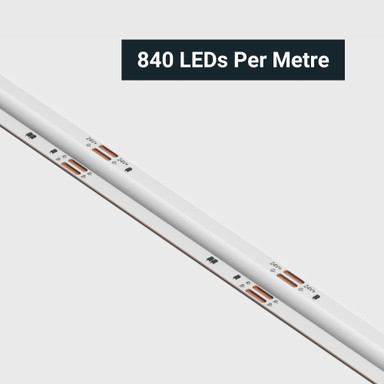

- LEDs per metre: 840 LEDs
- Cut Points: 50mm
- Beam Angle: 140°
- PCB Weight: 2oz
- Lumens: Up to 805lm/m
- Warranty: 7 Years
Information:
The Pro COB Series LED Strip Light is designed to deliver dependable, high-quality illumination across a wide range of professional applications. Engineered for medium to long-term installations, this series offers a cost-effective balance of performance and consistency, making it ideal for professional projects that prioritise reliability and value.
Part of the Professional range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

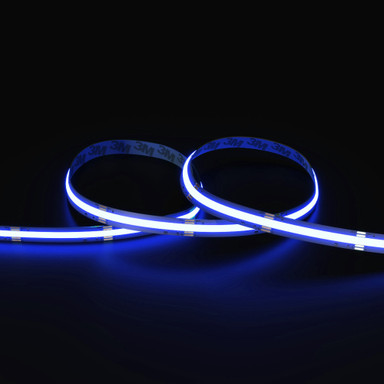

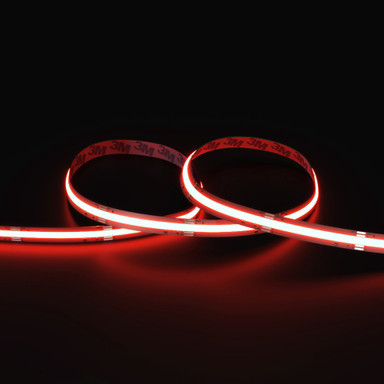

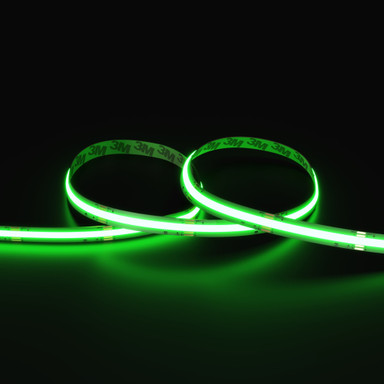

Available in colour changing RGB. Comes in both a 5 metre reel and 50 metre reel and can be cut to your required length using the cut points which are located at 50mm intervals.
Installation:

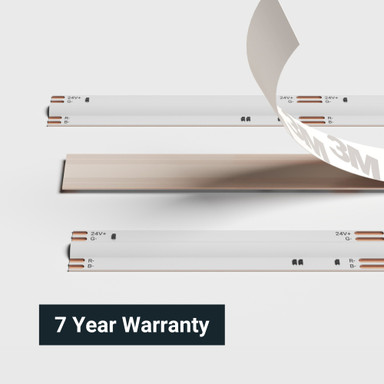

The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below are required in order to operate this product:
- 24V LED Driver
- 24V LED Controller
Product Specification
| Warranty (Years) | 7 |
| Dimmable | Yes |
| Rated Life (Hours) | 60000 |
| Switch Cycles | 10000 |
| Current Max. Rated (A) | 0.66 |
| Anti-Yellowing | No |
| Ingress Protection (IP) | 20 |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 70 |
| Anti-Glare Shield | No |
| Colour-Tuneable Light Source | No |
| Lighting Technology Used | LED |
| Mains or Non-Mains | Non-mains |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 22 |
| Chip Type | CSP |
| Copper Foil Weight (oz) | 2 |
| Cut Points (mm) | 50 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 1.19 |
| LEDs Per Metre (LEDs/m) | 840 |
| Min. Bend Radius (mm) | 30 |
| PCB Type | Flexible |
| Product Height (mm) | 2 |
| Product Weight (g) | 120 |
| Width (mm) | 10 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 140.1 |
| Bin Number | 1 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Self Adhesive (Brand & Model Number) | 3M tape-55230H |
| Brand | Tagra |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | PVC |
