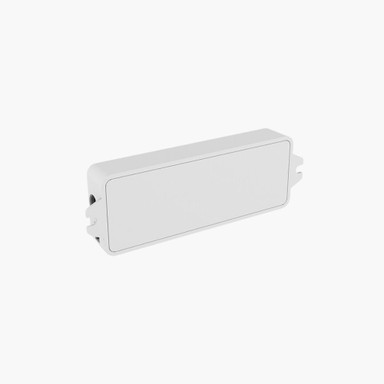

Tagra | RF 2.4GHz & Wi-Fi | 12-24V | 5-in-1 | LED Controller | 5 Channel | Single Colour - RGB+CCT | IP20
PSCONN-5IN1WIFIRCVRB
£29.40 Inc. VAT
Key Features
- Input Voltage (Min/Max): 12 V – 24 V
- Colour Control Type: Single Colour, CCT Tunable White, RGB, RGBW, RGBCCT
- Control Signal - Input: RF 2.4GHz
- Dimming Range (Min/Max): 0 % – 100 %
- Control Distance Barrier Free: 30 m
- Number of Control Channels: 5
- Max Output Current per Channel: 3 A
- IP Rating: 20
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Features:
- RGB, RGBW, RGB+CCT, colour temperature, or a single colour LED strip can all be controlled with the five-in-one feature.
- 5 channel constant voltage output and DC power socket input.
- Versatile control through the Tuya App interface with functions such as such as RGB colour selection, brightness adjustment, the ability to turn on/off lights, set timers, alter scenes and pulse to music.
- Voice control support for smart speakers.
- Can pair with an RF 2.4GHz remote control if required.
- Has the ability to function as a WiFi-RF converter. The Tuya APP can then be used to simultaneously operate one or more RF LED controllers.
- Selectable light on/off fade time of 3 seconds.
Control a variety of LED Tape types with one receiver. Works with Single Colour right through to RGBCCT LED tapes, can be controlled using RF 2.4 GHz hand held and wall mounted wireless controllers and WiFi for use with the smartphone app.
This receiver Can be voice controller when used with the Tuya® app. Gateway free wireless smartphone control and a compact slimline design makes installation quick and easy saving time and providing a professional standard lighting installation.
Featuring a timer function for scheduled on/off functions, music play function to allow your lights to 'dance' and a scene selection via the app to suit your mood.
All complete with a piece of mind 5 year guarantee.
Please note this product is not to be used with dimmable drivers - This product will dim LED's when paired with a constant voltage driver
Product Specification
Adjustable PWM | Yes |
Warranty (Years) | 5 |
Control Distance No Obstruction (m) | 30 |
Control Signal - Input | RF 2.4GHz |
Body Material | Plastic |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | Interior |
Input Voltage Min. - Max (V) | 12-24V |
Body Colour | White |
Product Height (mm) | 20 |
Product Weight (g) | 73 |
Width (mm) | 38 |
Constant Voltage / Constant Current | CV |
Max. Output Current Per Channel (A) | 3 |
Number of Control Channels | 5 |
Output Current Max. (A) | 3 |
Output Voltage Min. - Max. (V) | 12-24V |
Over Temperature Protection | Yes |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Dimming Range Min. - Max (%) | 0-100% |
Operating Temperature Min. - Max. (°C) | -30℃ to 55℃ |
Dimensions LxWxH (mm) | 114x38x20 |
Brand | Tagra |
Family Name | Wireless Control |
