Products Tested In-House
Tagra | 0/1-10V | Mains Powered 100-240V | LED Wall Plate | Single Colour | 4 Zones
TAG-WP4CH-0-10V
From £48.00 Inc. VAT
Key Features
- Input voltage (Min/Max): 100V–240V
- Colour control type: Single Colour
- Control signal - output: 0-10
- Number of zones: 4
- Number of scenes: 4
- Control distance barrier free: 10 m
- Ingress protection (IP): 20
- Body colour: Black, White
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 100-240V AC
- Input Signal: RF 2.4GHz
- Output Signal: 0-10V
- Output Current: 0.2A per channel
- Control Distance: 10 metres (unobstructed)
- Dimming Range: 0-100%

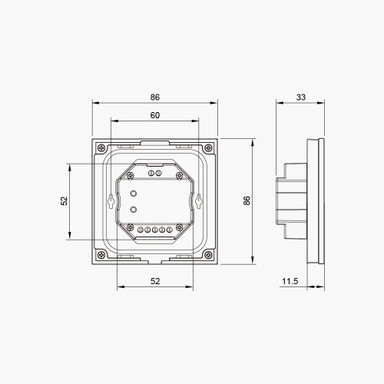

- Dimensions (mm): 86L x 86W x 33H
- Warranty: 5 Years
Information:

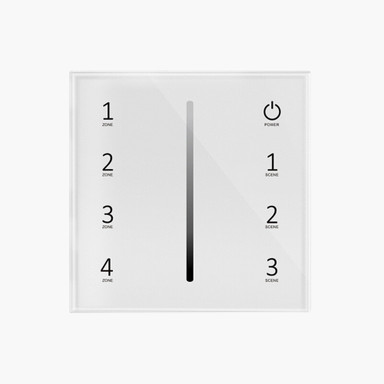

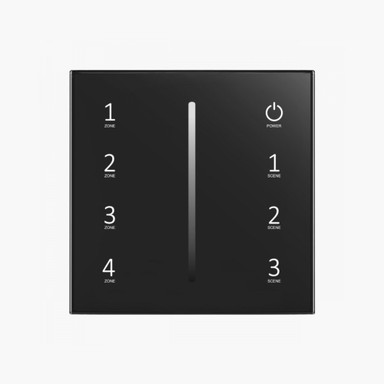

Introducing our Touch LED Wall Plate. This product features a high strength glass panel and sensitive touch keys. Available in both black and white finish to suit your interior requirements. Compatible with single colour strip lights, just connect to a 0-10V power supply for smooth dimming.
Features compatibility with RF 2.4GHz muti-zone remotes to allow you to control the lighting from a distance.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:

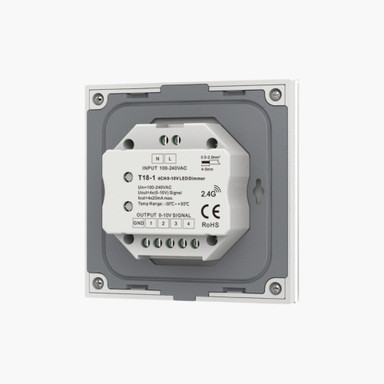

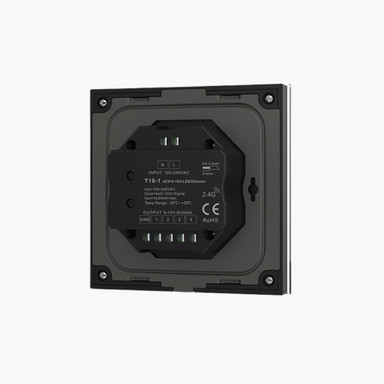

Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply. Can be installed into a standard UK back box (35mm depth) using the detachable baseplate. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 0-10V Dimmable LED Driver
- Single Colour LED Strip Light
Product Specification
| Warranty (Years) | 5 |
| Control Distance No Obstruction (m) | 10 |
| Control Signal - Input | RF 2.4GHz |
| Control Signal - Output | 0-10 |
| DIP Switch | No |
| Max. No. of Remotes | 20 |
| Number of Programmes | 2 |
| Number of Scenes | 4 |
| Current Max. Rated (A) | 0.002 |
| Application Environment | Hospitality, Domestic |
| Body Material | GLASS |
| Ingress Protection (IP) | 20 |
| Storage Humidity Max. (°C) | 75 |
| Working Humidity Max. (°C) | 93 |
| Input Current Type (A) | AC |
| Input Terminal / Connector Type | SCREW |
| Number of Input Terminals | 1 |
| Input Voltage Min. - Max (V) | 100-240V |
| Product Height (mm) | 33 |
| Depth (mm) | 86 |
| Width (mm) | 86 |
| Number of Output Terminals | 4 |
| Output Current Max. (A) | 0.04 |
| Output Current Type | AC |
| Output Terminal / Connector Type | SCREW |
| Battery Included | No |
| Electrical Safety Class | II |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -30℃ to 55℃ |
| Dimensions LxWxH (mm) | 86x86x33 |
| Brand | Tagra |
| Product Weight (g) | 231 |
| Number of Zones | 4 |
| Family Name | 0/1-10V Control |
Technical Documents
