Tagra | 0/1-10V | Mains Powered 100-240V | LED Wall Plate | Single Colour | 1 Zone
TAG-RP1CH-010V
From £38.40 Inc. VAT
Key Features
- Input voltage (Min/Max): 100V–240V
- Colour control type: Single Colour
- Number of zones: 1
- Control signal - output: 0/1-10V
- Control distance barrier free: 10 m
- Ingress protection (IP): 20
- Body colour: White
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 100-240V AC
- Input Signal: RF 2.4GHz
- Output Signal: 0-10V
- Output Current: Max. 3A
- Control Distance: 10 metres (unobstructed)
- Dimming Range: 0-100%

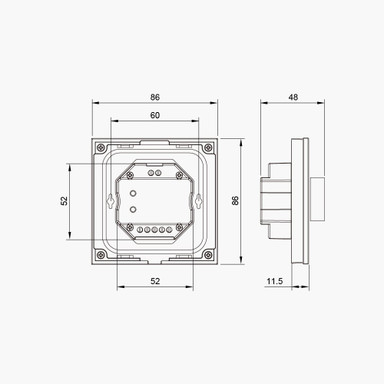

- Dimensions (mm): 86L x 86W x 48H
- Warranty: 5 Years
Information:

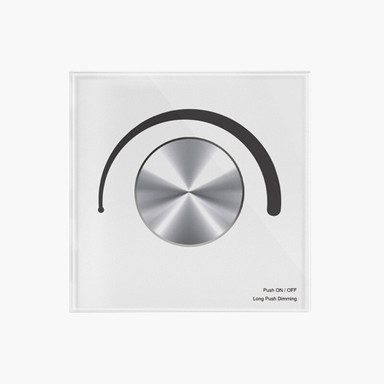

Introducing our Rotary LED Wall Plate. This product features a high strength glass panel and brushed design rotary knob. Available in both black and white finish to suit your interior requirements. Compatible with single colour strip lights, just connect to a 0-10V power supply for smooth dimming.
Features compatibility with RF 2.4GHz single or muti-zone remotes to allow you to control the lighting from a distance.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:

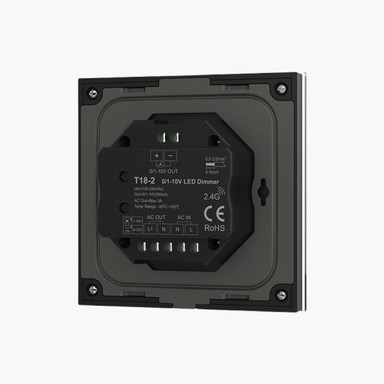

Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply. Can be installed into a standard UK back box (35mm depth) using the detachable baseplate. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 0-10V Dimmable LED Driver
- Single Colour LED Strip Light
Product Specification
Warranty (Years) | 5 |
Control Distance No Obstruction (m) | 10 |
Control Signal - Input | DIAL + RF 2.4GHZ |
Control Signal - Output | 0/1-10V |
DIP Switch | Yes |
Max. No. of Remotes | 20 |
Number of Scenes | 0 |
Remote Included | No |
Current Max. Rated (A) | 3 |
Application Environment | Hospitality, Domestic |
Body Material | GLASS |
Ingress Protection (IP) | 20 |
Storage Humidity Max. (°C) | 75 |
Working Humidity Max. (°C) | 93 |
Input Current Type (A) | AC |
Input Terminal / Connector Type | Screw |
Number of Input Terminals | 1 |
Input Voltage Min. - Max (V) | 100-240V |
Product Height (mm) | 48 |
Depth (mm) | 86 |
Product Weight (g) | 240 |
Width (mm) | 86 |
Number of Control Channels | 1 |
Number of Output Terminals | 1 |
Output Current Max. (A) | 3 |
Output Current Type | AC |
Output Terminal / Connector Type | SCREW |
Battery Included | No |
Electrical Safety Class | II |
Dimming Range Min. - Max (%) | 0-100% |
Operating Temperature Min. - Max. (°C) | -30℃ to 55℃ |
Dimensions LxWxH (mm) | 86x86x48 |
Brand | Tagra |
Max. Output Current Per Channel (A) | 3 |
Family Name | 0/1-10V Control |
Output Voltage Min. - Max. (V) | 100-240V |
