Tagra | Joinery LED Neon Flex | Angled Beam | Cut Anywhere | 14.4x6mm | 24V | IP54 | 11.5Wp/m | 5M Kit
NEONASYMM-5MKIT
From £135.00 Inc. VAT
Key Features

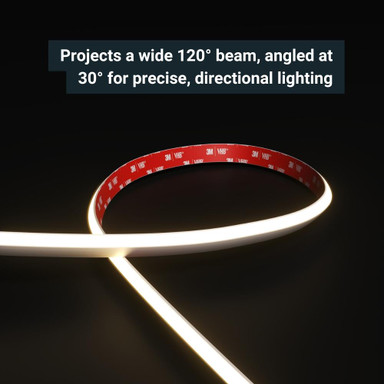

- Key Spec Feature: Projects a wide 120° beam, angled at 30° for precise, directional lighting.

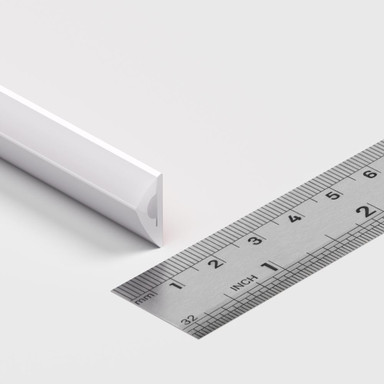

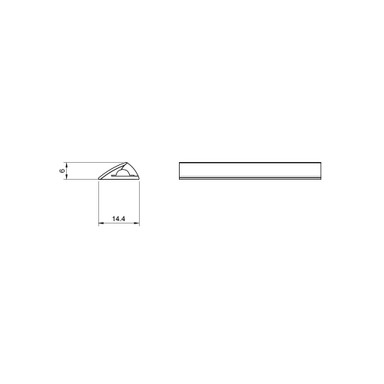

- Dimensions: 14.4 × 6mm
- Bend Direction: Vertical
- LM/M: Up to 710
- LM/W: Up to 68
- Max Run Length: 5m
- Kit Contents: 5m reel with 500mm cable at both ends, extra 500mm cable, 2× end caps, 10ml silicone glue
- Available Colours: 2300K, 2700K, 3000K
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Furniture / Cabinetry / Displays / Task & Accent Lighting
- Beam Angle: Projects a wide 120° beam, angled at 30° for precise, directional lighting.
- Bend Direction: Vertical
- Dimensions: 14.4 × 6mm
- Voltage: 24V DC
- Power Consumption: 11.5W/m
- IP Rating: IP54
- Cut Points: Cut Anywhere
- Light Output: Up to 710 lm/m
- CRI: >90
- SDCM: <3
- Max Run Length: 5m
- Installation: Pre-attached 3M tape for easy installation – no additional mounting accessories required
- Available Colour Temperatures: 2300K, 2700K, 3000K
- Warranty: 5 Years
Introducing our New Joinery LED Neon Flex – Angled Beam

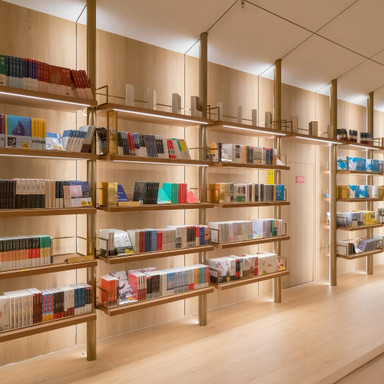

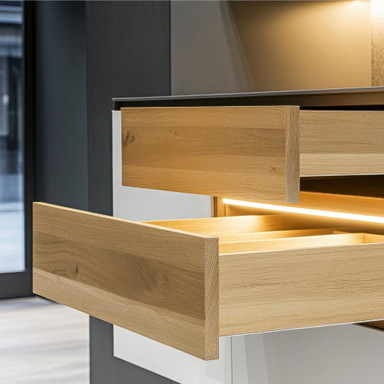

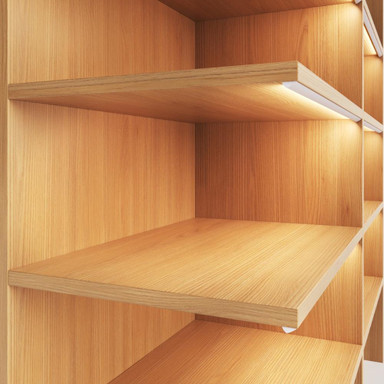

This new Angled Beam LED Neon Flex features a slim triangular shape, engineered to project light at an angle for precise directional illumination. It delivers a smooth, dot-free line of light and includes a 3M adhesive backing for quick, hassle-free installation. This neon has been designed for furniture and cabinet displays, under-shelf lighting for items such as glassware or jewellery, wardrobe illumination, and task lighting on kitchen countertops. It’s also perfect for accent lighting to create atmosphere and visual appeal. With the added cut-anywhere technology, this joinery neon provides full flexibility, perfect fit for your installation, as well as providing a uniform, spot free finish.
Key Features
- Angled Beam for highlighting objects, task lighting, or accent lighting
- Cut-anywhere technology for maximum flexibility
- Dot-free illumination for a seamless finish
- Up to 710 lumens per metre
- Durable, flexible silicone housing with anti-yellowing properties
- Rear-entry cable design for discreet, low-profile installation
- IP54 rating

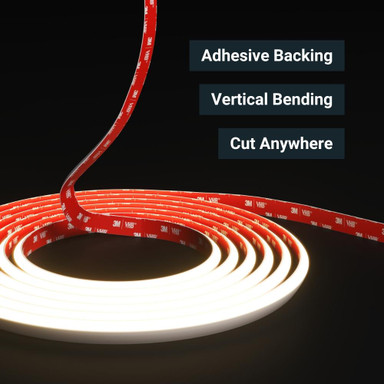

- 3M adhesive backing for simple installation
- 5m max run length, powered from one end
Kit Contents
- 5 Metre Reel with 500mm cable on both ends
- 1 × Extra 500mm cable
- 2 × pairs of End Caps
- 10ml Silicone Glue
- User manual
Installation Guidance
This product must be installed by a suitably competent person and in accordance with IEE Wiring Regulations and Building Regulations. Please consult the installation manual before starting work. For best results, use appropriate mounting accessories. Rear-entry cable allows for flush, clean integration into joinery or decorative features.
Required Products
- A compatible 24V LED Driver
- Spare End Caps (if needed)
Sample Availability
- 50cm sample sections with 30cm pre-attached cable available upon request. Contact our team via phone, email or live chat to request a sample.
Product Specification
Warranty (Years) | 5 |
Dimmable | Yes |
Dimming Type | PMW |
Current Max. Rated (A) | 2.5 |
Max. Run Length (m) | 5 |
Anti-Yellowing | Yes |
Application Environment | Furniture, Cabinetry, Retail, Signage, Hospitality |
Body Material | Silicone |
Ingress Protection (IP) | 54 |
Interior or Exterior Use | Interior |
Saltwater Resistant | Yes |
Solvent Resistant | Yes |
Storage Humidity Max. (°C) | 60 |
UV Resistant | Yes |
Input Voltage Min. - Max (V) | 24-24V |
Body Colour | White |
Cable Both Ends | Yes |
Cable Length (mm) | 500 |
Cable Weight (AWG) | 20 |
Chip Type | SMD 2216 |
Copper Foil Weight (oz) | 3 |
Cut Points (mm) | 0 |
Entry Cable Direction | Rear |
LED Module Replaceable | false |
LED Pitch (mm) | 2.72 |
LEDs Per Metre (LEDs/m) | 300 |
Min. Bend Radius (mm) | 100 |
Product Height (mm) | 6 |
Product Weight (g) | 200 |
Width (mm) | 14 |
Constant Voltage / Constant Current | CV |
End Caps Included | Yes |
Beam Angle (°) | 120 |
Bin Number | 1 |
CRI | 90 |
Lumens Per Watt (Lm/W) | 68 |
SDCM | 3 |
Electrical Safety Class | III |
Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
Dimensions LxWxH (mm) | 5000x14x6 |
Family Name | Joinery Series |
Certification | EMC - 2014/30/EU |
Bend Direction | Vertical |
Cable Sheath Material | Silicone |
