Choosing The Right Neon Flex For Your Application
At Ultra LEDs, we’ve spent years perfecting LED Neon Flex lighting for professionals who demand performance, creativity, and reliability.
We've now got six function-first Neon Flex ranges, each designed to deliver the right balance of flexibility, protection, and visual impact for specific applications.
From sculptural ceiling loops to submersible installations, this guide will help you select the best LED Neon Flex solution for your next project.
Ultra LEDs Neon Flex Range
Ultra LEDs supplies six dedicated Neon Flex ranges, each designed for specific applications such as signage, architectural detail, commercial display, and decorative installations.
| Series Name | Designed For |
|---|---|
| Quick Connect Series | Designed for short-term creative installs. |
| Pro Series | Designed with high-performance technology for long-term professional applications. |
| Joinery Series | The perfect solution for cabeintry, furniture, signage, and retail displays. |
| Décor Series | Designed for decorative feature lighting in creative and commercial settings. |
| Build Series | Engineered for permanent facades, commercial and infastructure lighting, and demanding environments. |
| Architectural Series | From building façades to marine environments, it’s engineered to perform in every environment. |
Each series is designed for specific installation needs, with variations in size, bend format, protection rating, and visual output.
The sections below outline where each is best applied, detailing typical use cases, bend suitability, and installation requirements.
If you want to learn more about what Neon Flex is, its technical specifications, and how to choose between Neon Flex and LED tape, you can read our comprehensive guide here.

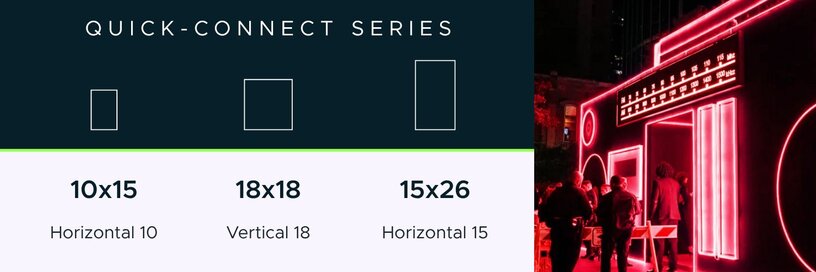

Quick Connect Series
Fast, Flexible, Plug-In Power for Long Run Lengths
The Quick Connect Series is designed for short-term creative installations where speed, flexibility, long run lengths, and visual impact are priorities.
Supplied pre-wired with quick-connect fittings, the system allows faster setup for applications such as displays, pop-ups, stage designs, and seasonal lighting. While most connections are tool-free, some elements, such as heat-shrink, require basic installation tools for a secure finish.
Use Cases: Displays, pop-ups, temporary stage designs, and seasonal lighting. Suitable for projects requiring rapid installation and extended continuous runs.
Power & Run Lengths
Runs up to 15–18 metres on a single 24V feed, depending on model and load.
Most short-term installations can be completed without additional power injection.
Protection
Rated IP65: Splash and rain resistant for short-term outdoor use. For permanent exterior installs, use a higher-rated series.
Warranty: 6 months (outdoor), 12 months (indoor)
Colours & Kits
Available in single-colour (white variants and bold hues) and RGB, supplied in 10 metre kits or 50 metre bulk reels depending on the model, including power kit.
Power kits, mounting brackets, and aluminium tracks available separately..

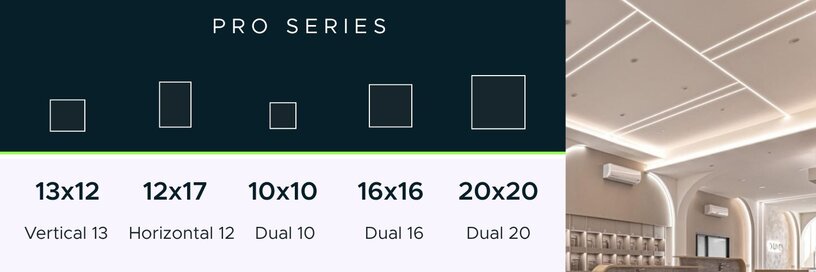

Pro Series
Durable Performance Meets Visual Impact
The Pro Series is engineered for professionals who need a balance of brightness, reliability, and flexibility in permanent and semi-permanent settings. It’s ideal for indoor and outdoor use across retail, hospitality, and signage applications.
Use Cases: Ideal for long-term signage, architectural edge lighting, shopfitting, and permanent display integration.
Power & Run Lengths
Standard models support 5–10 metre runs per 24V feed. In some models, 48V variants are available for longer distances.
Dual-feed or staged injection recommended for extended runs.
Custom-cut lengths can be supplied subject to MOQs and lead times.
Protection
Rated IP67: Fully sealed in high-grade silicone. Waterproof, UV-resistant, and solvent-resistant for permanent interior and exterior use.
Warranty: Up to 7 years (specification dependent)
Colours & Kits
- Static White (all CCTs)
- CCT Tunable White
- RGB
- RGBW
- High CRI (90+) available on white models. Up to 1000+ lm/m depending on spec.

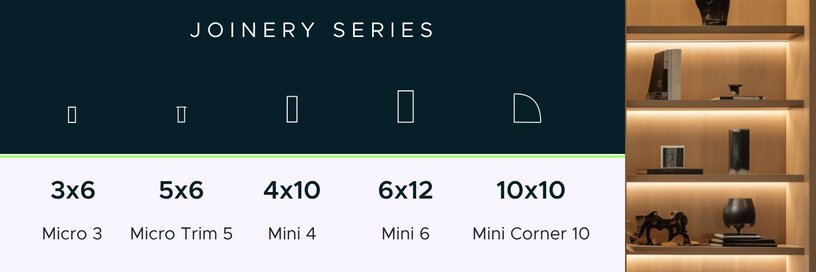

Joinery Series
Precision Light for Tight Spaces
The Joinery Series is purpose-built for compact installs in shelving, cabinetry, signage, and interior features. With ultra-slim profiles and, in selected models, cut-anywhere technology, it integrates seamlessly into shallow or curved layouts.
Use Cases: Shopfitting, shelving, wardrobes, internal signage, and concealed joinery detail lighting where precision and compact size are critical.
Power & Run Lengths
Power consumption: 7–10 W/m.
Most formats include cut-anywhere functionality for exact fit and efficient layout.
Protection
Rated IP54–IP65: Dust-protected and resistant to light splashes or, in higher-rated models, protection against low-pressure water jets.
Suitable for dry interiors or enclosed cabinet environments, with higher IP options for more demanding conditions.
Colours & Kits
Available in tunable white and RGB (RGB only in 6x12) as:
-
5 metre kits – includes spare cable, end caps, silicone glue, and mounting brackets
-
30 metre reels for continuous long runs or bulk supply (availability depends on profile size)

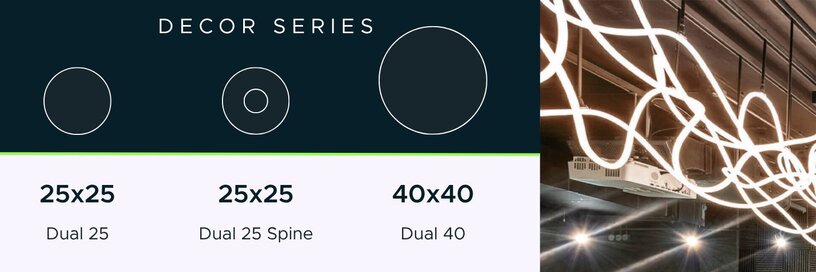

Décor Series
360° Illumination That Makes a Statement
Designed for visible feature lighting, the Décor Series creates soft halo effects from every angle. It’s ideal for architectural accents, statement shapes, and hospitality lighting where the fixture is part of the visual experience.
Use Cases: Ceiling loops, suspended shapes, feature walls, sculptural forms, and hospitality installations where the light source contributes to the aesthetic.
Power & Run Lengths
Typical draw: 14–20 W/m
Output by size:
• 25 mm: up to 950 lm/m
• 40 mm: up to 1310 lm/m
Protection
Rated IP65: For indoor and sheltered outdoor use, including humid interiors and event structures.
UV-stable jacket resists yellowing.
Colours & Lengths
Static White (single and tunable), RGB and RGBW
-
25 mm available in 2.5 m and 5 m lengths only, not sold as kits
-
25 mm spine and 40 mm not stocked
-
Accessories include transparent surface clips, semi-round aluminium channels, cylinder holds, and disc wall mount kits for discreet mounting

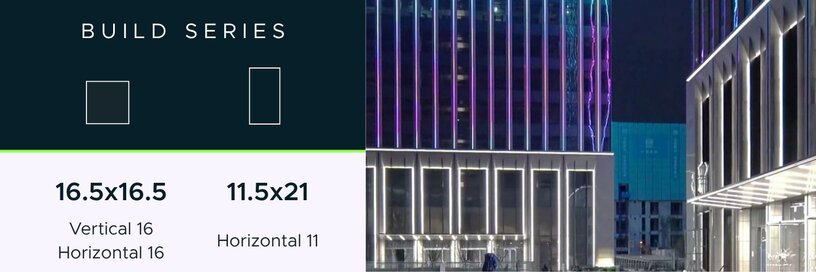

Build Series
IP68 Protection for Demanding Conditions
The Build Series is built to order and engineered for long-term performance in harsh environments. Each unit is factory-sealed to IP68 with rugged waterproofing, UV stability, and salt resistance, making it suitable for architectural and marine installations.
Use Cases: Façades, marine lighting, public artworks, fountains, bridges, and structural lighting where high durability is required.
Power & Run Lengths
Power draw: 10–15 W/m.
Run lengths:
- Up to 20 m at 24V
- Up to 40 m at 48V
Longer runs supported with dual feeds or staged injection.
Protection
Rated IP68: Waterproof, UV-resistant, salt- and solvent-proof, and submersible (static, 1 m depth). Suitable for harsh conditions.
Colours & Lengths
Static White, RGB, and RGBW
-
Supplied pre-cut to specification with connector systems included
-
Sold by the metre as a custom, non-stocked product, not sold in kits or stocked as standard

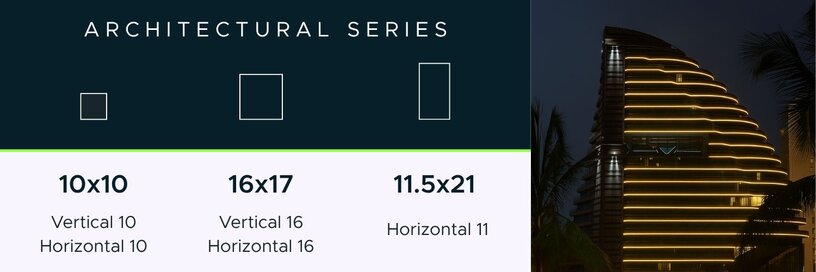

Architectural Series
Custom-Configured for Landmark Projects
When only the highest specs will do, the Architectural Series delivers. Built to order, this range offers full control over power, protection, and colour, making it ideal for high-profile public and architectural environments.
Use Cases: Bridges, high-rises, stadiums, landmark buildings, public art, and marine zones with high visual and durability demands, as well as environments with elevated ambient temperatures such as desert climates or high-output installations
Power & Run Lengths
Available in 24V and 48V.
Power draw: 10–15 W/m. Max single-ended run:
- 6 m (24V)
- 10 m (48V)
- Longer runs require centre feed or dual injection.
Protection
IP67 as standard, with some formats available in IP68.
Additional options:
- High-temp tolerance
- Salt/chlorine resistance
Colours & Kits
- White: Static & CCT
- RGB & RGBW
- Custom feed locations (end, bottom, or side exit). Built to order with lead times to suit project requirements.
Choosing Flex for Your Project
Each Neon Flex Series has been crafted with one goal: to give professionals complete control over how they bring light into a space.
Signage & Lettering
Joinery Series – for small lettering and tight curves in shallow installs
Pro Series – for clean, consistent outlines in retail/commercial signage
Build Series – for large, exposed signage requiring IP-rated durability
Furniture, Joinery & Interiors
Joinery Series – for shallow trims, cabinetry, shelving, and display case integration

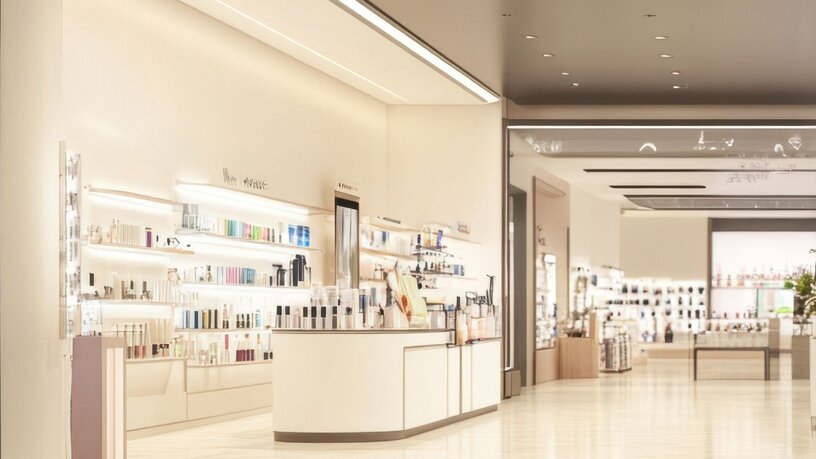

Retail, Events & Displays
Quick Connect Series – plug-in systems for fast install and temporary setups
Pro Series – integrated lighting for continuous high brightness in retail or exhibition spaces
Décor Series – for sculptural, feature and presentation displays

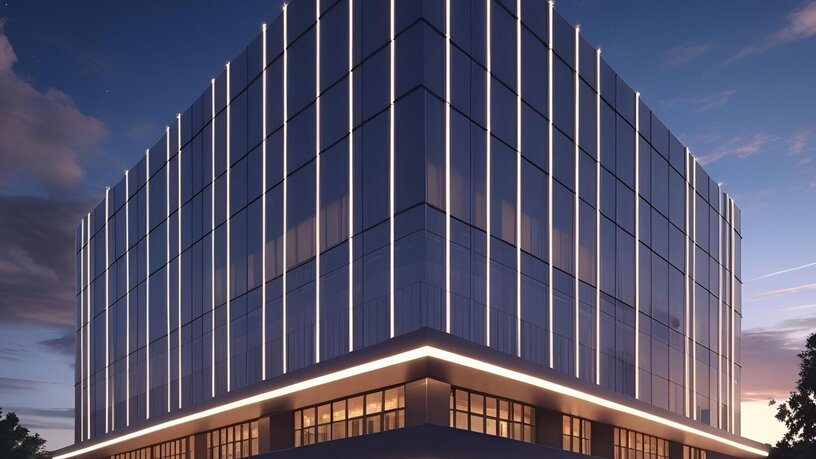

Architecture & Building Façades
Build Series – custom-built IP68 for long, durable external runs
Architectural Series – custom-built formats for complex, high-spec installs

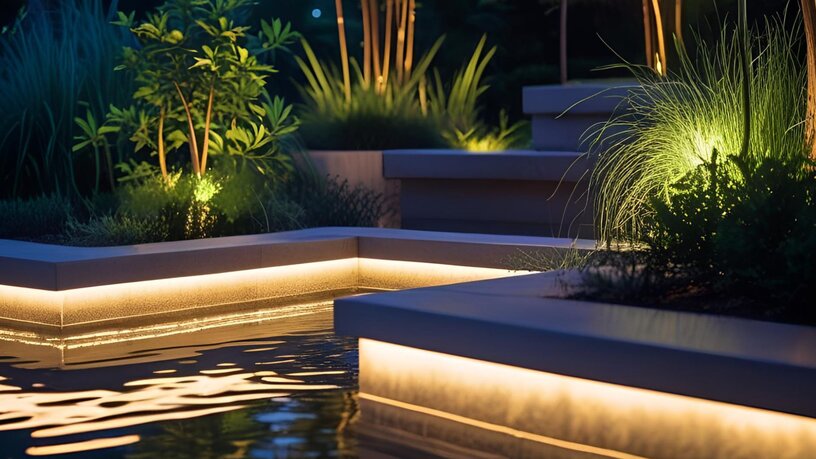

Outdoor Features & Landscaping
Build Series (IP68) – for submerged installs, fountains, or ground lighting
Pro Series – for durable, long-term outdoor run
Creative & Immersive Environments
Quick Connect Series – short-term sets and activations
Pro Series – flexible RGB lighting
Build Series – rugged RGB formats for permanent installs
Explore the Neon Range
Use the Ultra LEDs Neon Flex guide for detailed product specifications and installation advice.
Frequently Asked Questions
What’s the difference between the Neon Flex series?
Each series is designed for a specific use case. Joinery is compact and cut-to-length, Quick Connect is for temporary setups, Pro balances flexibility and brightness, Décor is for 360° visual impact, Build is for sealed outdoor use, and Architectural is configurable for large-scale installs.
Can I use Neon Flex outdoors?
Yes, but only with the correct protection rating. Use Build Series (IP68), Pro Series (IP65/IP67), or Architectural Series (IP67/IP68) for long-term or exposed outdoor environments.
Which Neon Flex works in tight spaces?
The Joinery Series is engineered for compact, shallow installs and offers the smallest format sizes with tight bending capability.
Can all Neon Flex ranges create curved or sculptural shapes?
Yes. Décor, Build, and Architectural Series support curved or shaped installs depending on the size, bending format, and mounting approach.
What if I need plug-in, temporary Neon Flex?
The Quick Connect Series is designed specifically for fast setup with pre-wired connectors, ideal for temporary retail or event lighting.
