Introducing: LED Light Sheets
A flexible sheet of LED lights designed to provide uniform illumination for large spaces. These light sheets bring high-output lighting to applications like retail displays, architectural features, and signage with ease and efficiency.
In the past, achieving this level of coverage meant using multiple LED strips to light an entire surface. Now, with LED light sheets, a single sheet can deliver seamless, even lighting across a large area, making installation simpler and more effective.
With exceptional flexibility, the sheets are easy to cut at 16.77mm intervals (LS24 & LS24-CCT) or 25.42mm intervals (LS24-RGBW) and can be trimmed vertically, diagonally, or horizontally to fit any project requirements.
Each sheet contains 420 to 1152 LEDs, providing bright, even lighting without visible hotspots, ensuring flawless results in every installation.
Available in three options:
- LS24 – Fixed white in 3000K or 6500K.
- LS24-CCT – Tunable white (2700K–6500K) for adaptable lighting.
- LS24-RGBW – RGB colour mixing with a dedicated white channel (RGB+3000K or RGB+6500K).
Installation is straightforward with 3M adhesive backing, allowing secure mounting on various surfaces, including uneven spaces.
Vertical, Horizontal, and Diagonal Cuts
LS24, LS24-CCT, and LS24-RGBW light sheets feature precise cut points for seamless installation.
LS24 and LS24-CCT cut every 16.77mm, while LS24-RGBW cuts at 25.42mm for custom layouts, fitting curved and complex designs

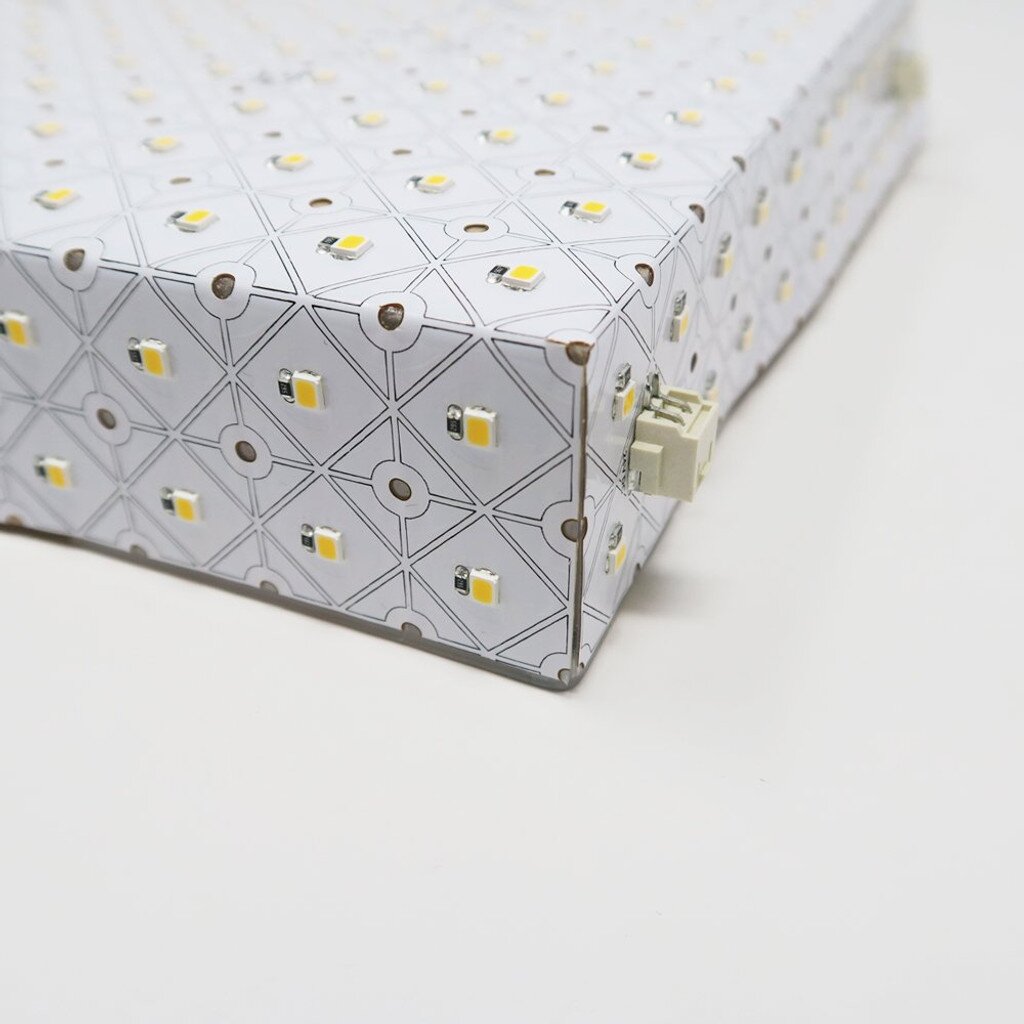

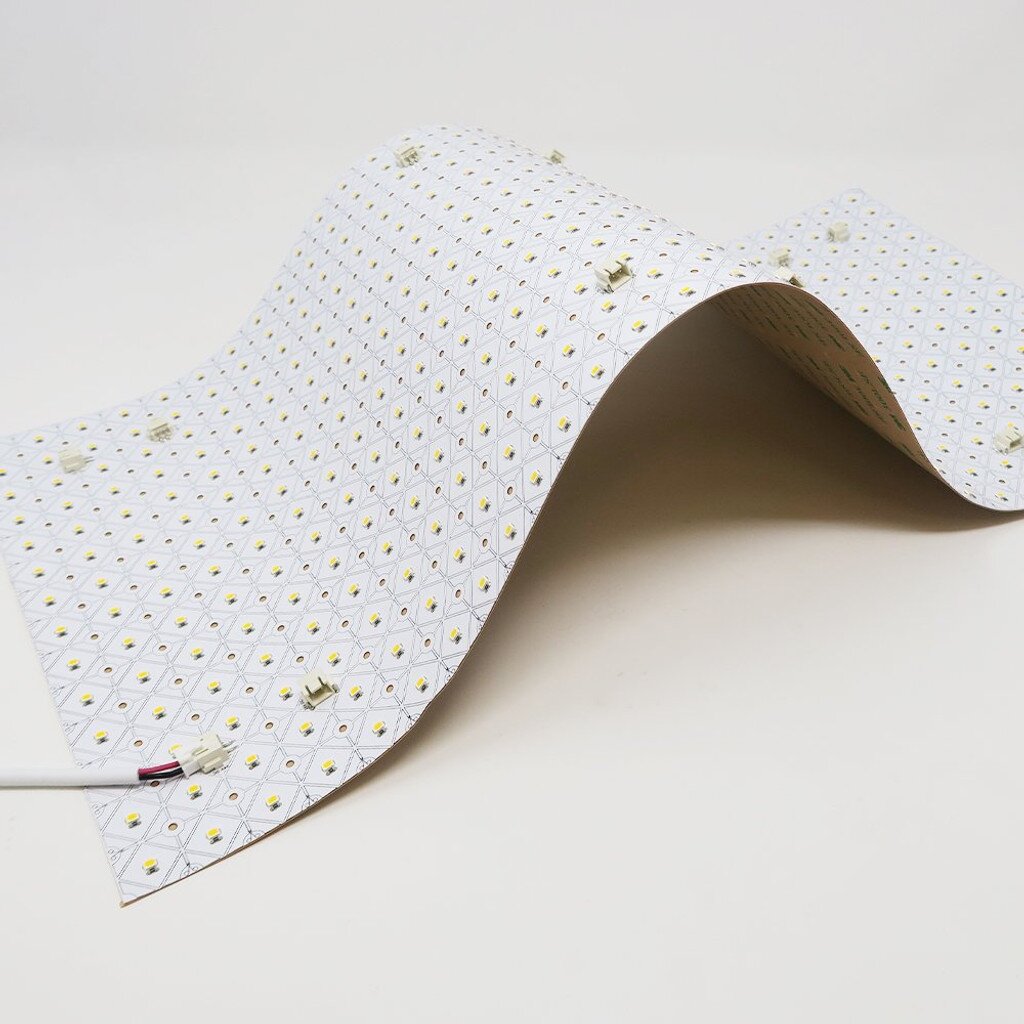

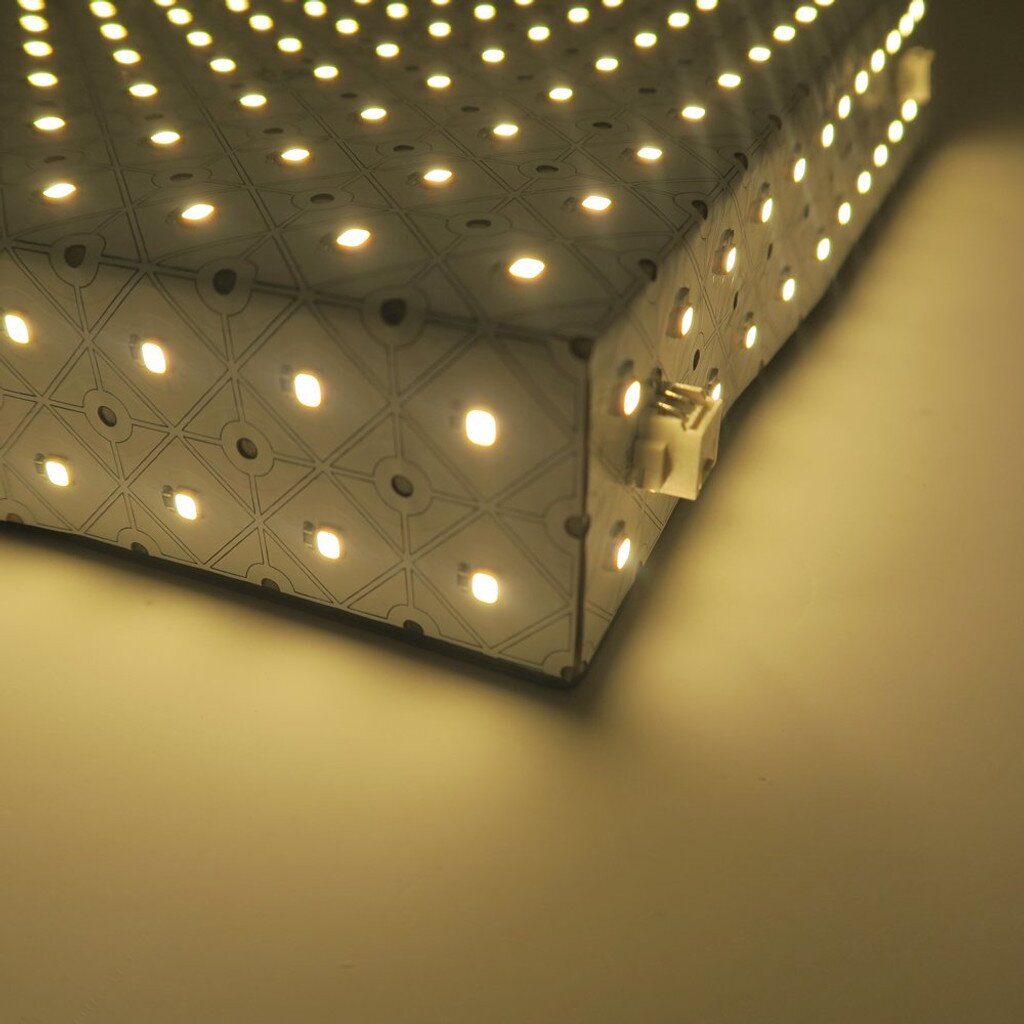

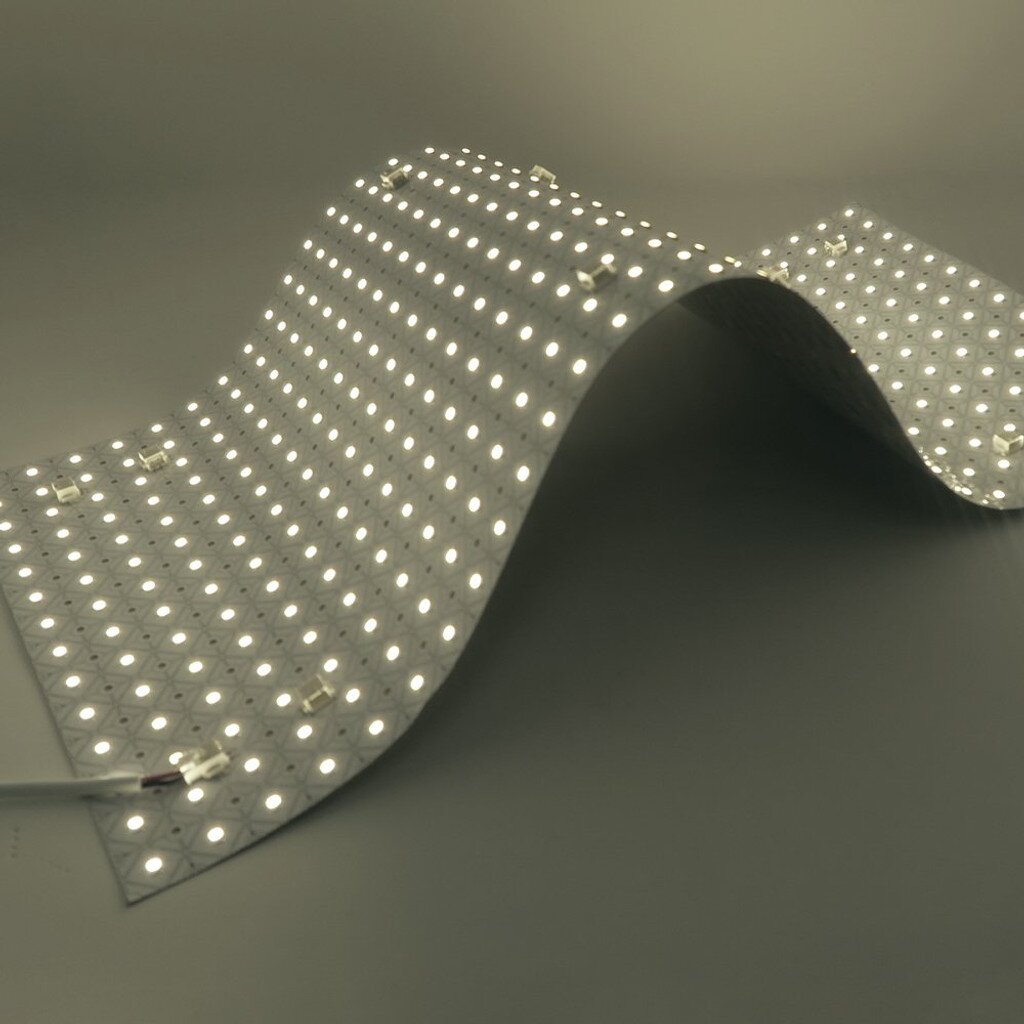

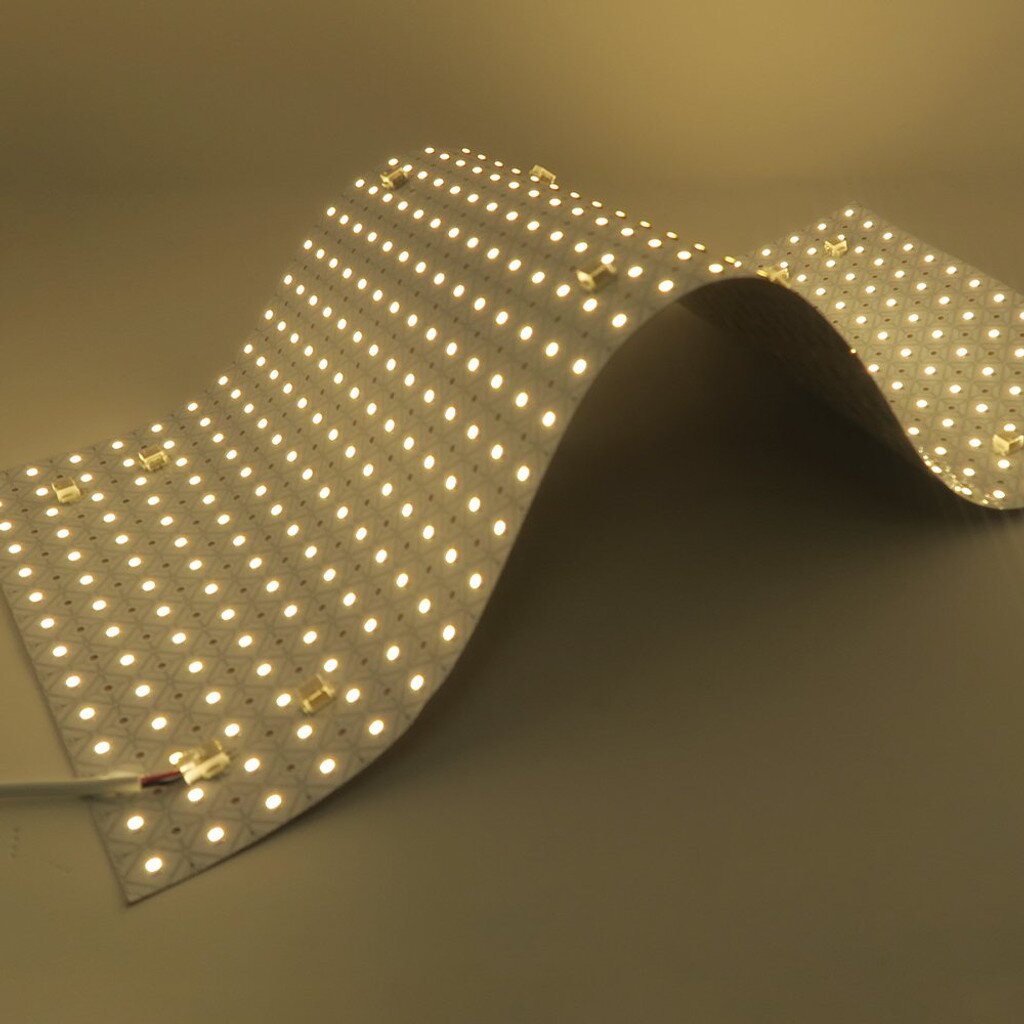

Ideal for Curved & Uneven Surfaces
With flexible cutting points and high-density LEDs, the LS24 range provides seamless illumination across curved, angled, and complex installations—delivering a reliable solution for retail, architectural, and display lighting.
Available in Single Colour, CCT, and RGBW
LS24 & LS24-CCT: Sold in packs of four for full coverage, these sheets provide consistent illumination for large-scale installations.
LS24-RGBW: Sold in packs of two, offering full RGB colour mixing with a dedicated white channel (3000K or 6500K) for added versatility. Ideal for dynamic lighting applications that require both vibrant colour and functional white light.
420 - 1152 LEDs Per Sheet
LS24: 420 LEDs per sheet – cost-effective brightness.
LS24-CCT: 840 LEDs per sheet – uniform, high-intensity lighting.
LS24-RGBW: 1152 LEDs per sheet – dynamic RGB control with a dedicated white channel.
All deliver up to 1780 lumens per metre for powerful illumination.
What Are LED Light Sheets?
Light sheets are an innovative lighting solution that provides uniform illumination across large surfaces quickly and efficiently.
Unlike traditional LED strips, which require multiple runs to cover expansive areas, light sheets deliver consistent brightness in ultra-thin, flexible panels.
With high LED density, they fit into shallow spaces while offering spot-free, even lighting across large areas. Their design allows for customisation across different lighting needs, including single-colour, tunable white, and RGBW options.
This adaptability makes them ideal for seamless lighting in a wide range of applications, including curved and uneven surfaces.
At Ultra LEDs, our light sheets, such as the LS24, LS24-CCT, and LS24-RGBW, meet the demands of modern lighting projects by combining efficiency, versatility, and high performance.
They are perfect for both commercial applications, such as retail displays, signage, and office environments, and residential uses, including under-cabinet lighting, home offices, and feature walls, where space is limited but high-quality, consistent lighting is essential.
Our Selection Of Light Sheets
LS24 Light Sheet
The LS24 light sheet features 420 LEDs per sheet, delivering up to 1780 lumens per sheet. Available in fixed colour temperatures of 3000K (warm white) and 6500K (cool white), it’s ideal for architectural details, retail lighting, and display cases.
With 16.77mm cut points, it can be easily trimmed to fit custom spaces without compromising performance.
LS24-CCT Light Sheet
The LS24-CCT light sheet offers tunable white temperatures from 2700K to 6500K, with 840 LEDs per sheet for uniform light distribution, even in shallow enclosures.
With 16.77mm cut points, it can be trimmed to fit the contours of any space, making it ideal for luxury retail and architectural projects that require precise, adaptable lighting. Its tunable range also supports human-centered lighting, allowing the light’s intensity and colour temperature to adjust with the time of day.
This flexibility helps align with natural circadian rhythms, promoting comfort and well-being by mimicking natural light conditions throughout the day and night.

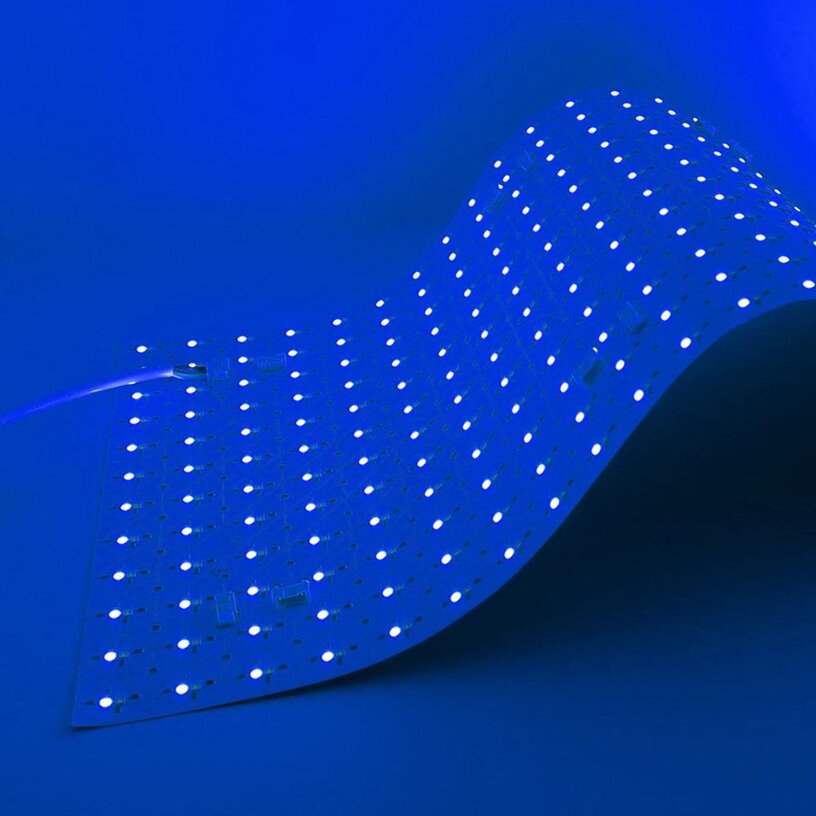

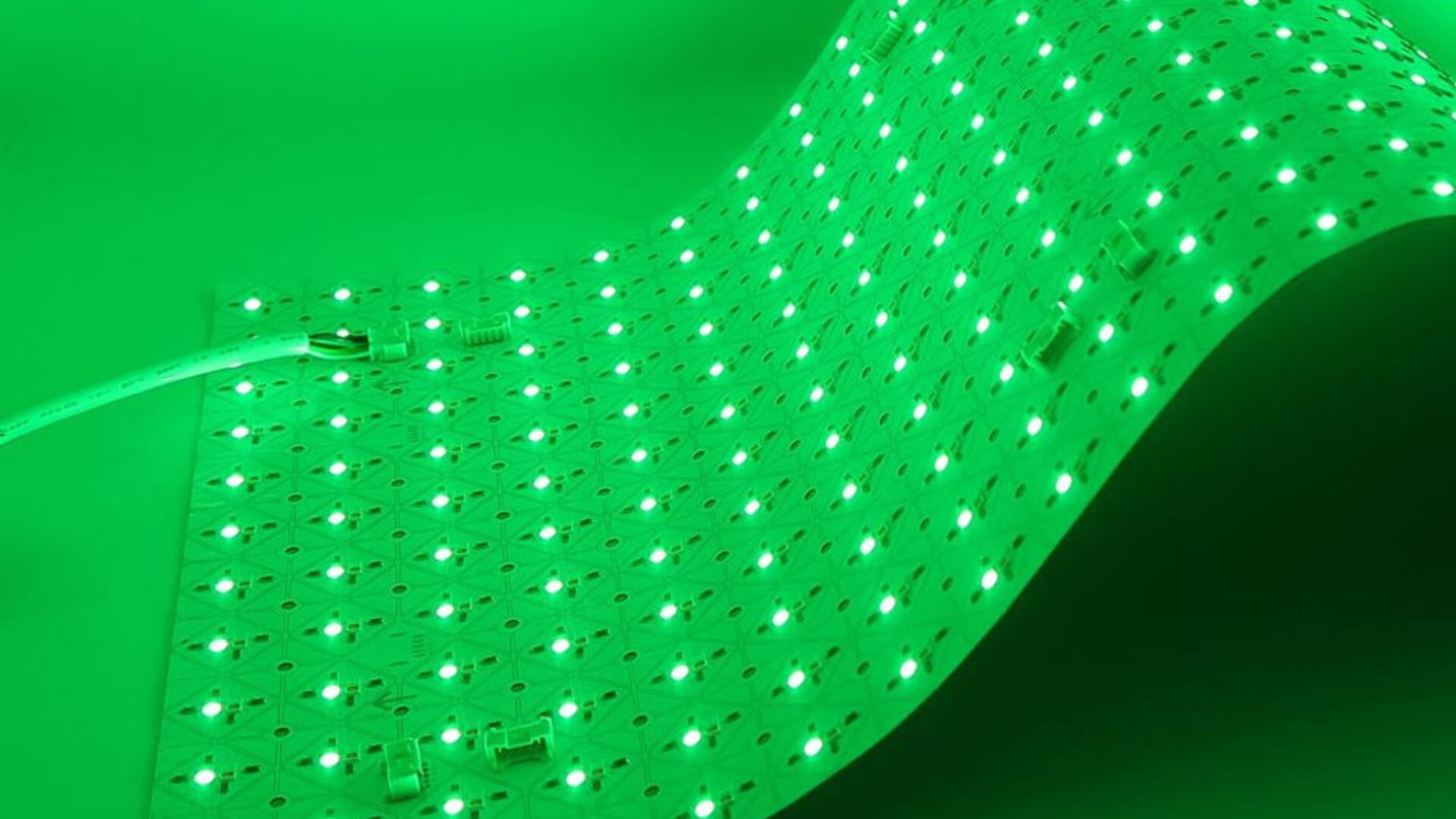

LS24-RGBW Light Sheet
The LS24-RGBW light sheet offers dynamic colour mixing with a dedicated 3000K or 6500K white channel, delivering up to 1180 lumens per sheet for vibrant, high-quality illumination. Designed for retail displays, architectural features, and bespoke installations, it provides smooth, uniform lighting with no visible hotspots.
With 25.42mm cut points, the sheet can be tailored for vertical, horizontal, and diagonal installations, ensuring a precise fit for curved, uneven, or custom-designed spaces. Its high LED density and IP20 rating make it an ideal solution for indoor applications requiring flexible and controllable lighting.
How To Use Our LED Light Sheets
Our Light Sheets are simple to use and easy to install, making them suitable for any project.
1. Prepare The Surface
Ensure the surface is clean and dry before installation. For optimal performance and heat dissipation, mount on heat-conductive surfaces like Aluminium Composite Material (ACM) panels. Avoid mounting directly on MDF or other heat-retentive materials, as they can reduce the lifespan and efficiency of the LEDs.

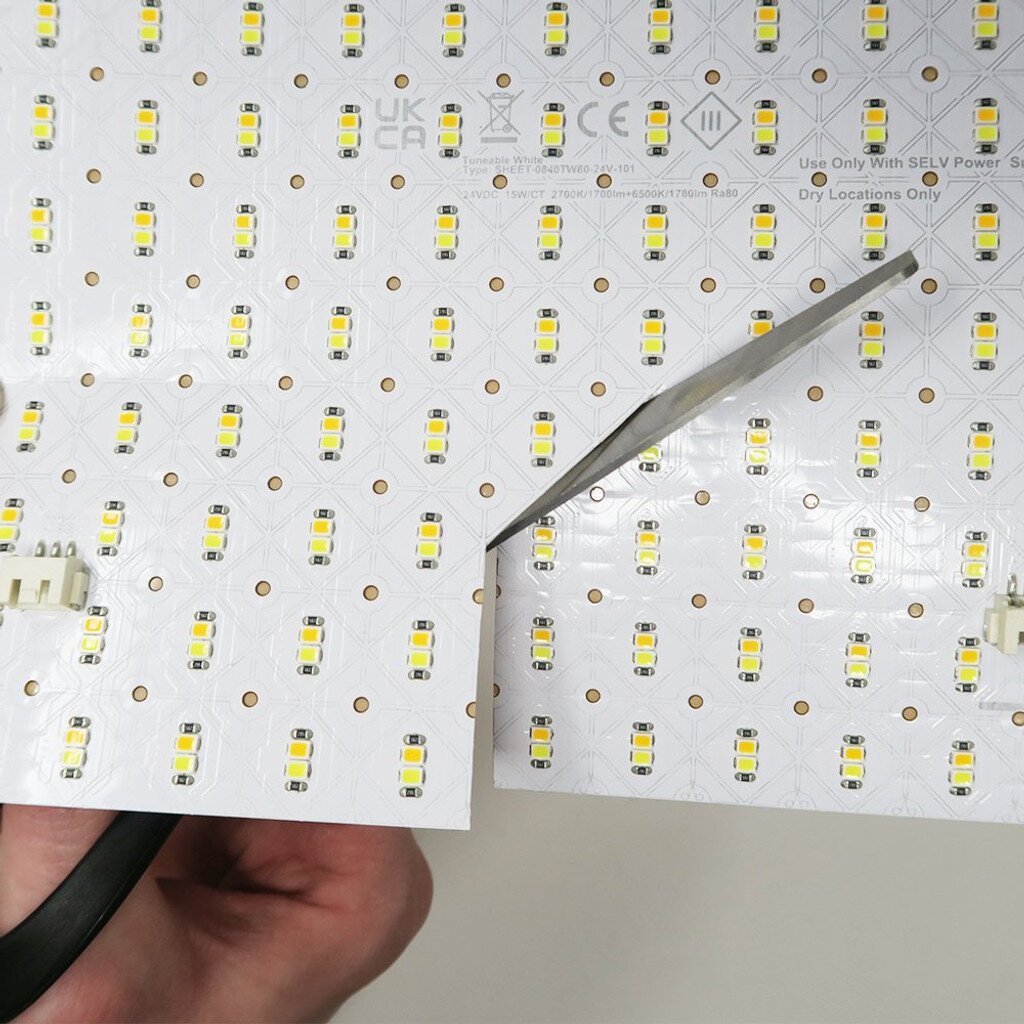

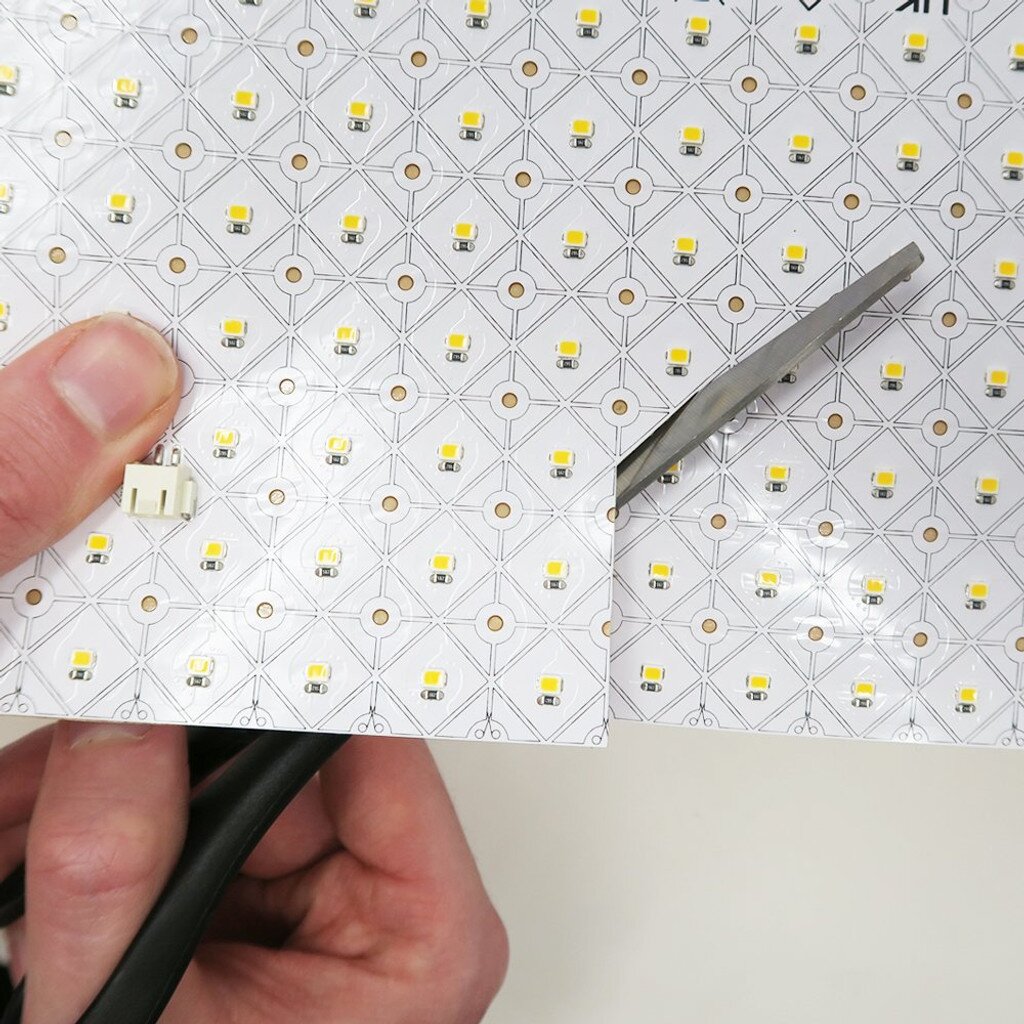

2. Measure And Cut
Light sheets can be trimmed to fit specific space requirements. LS24 and LS24-CCT can be cut at 16.77mm intervals, while LS24-RGBW features 25.42mm cut points for precise adjustments. Use the marked cut points and sharp scissors to ensure clean, accurate cuts.

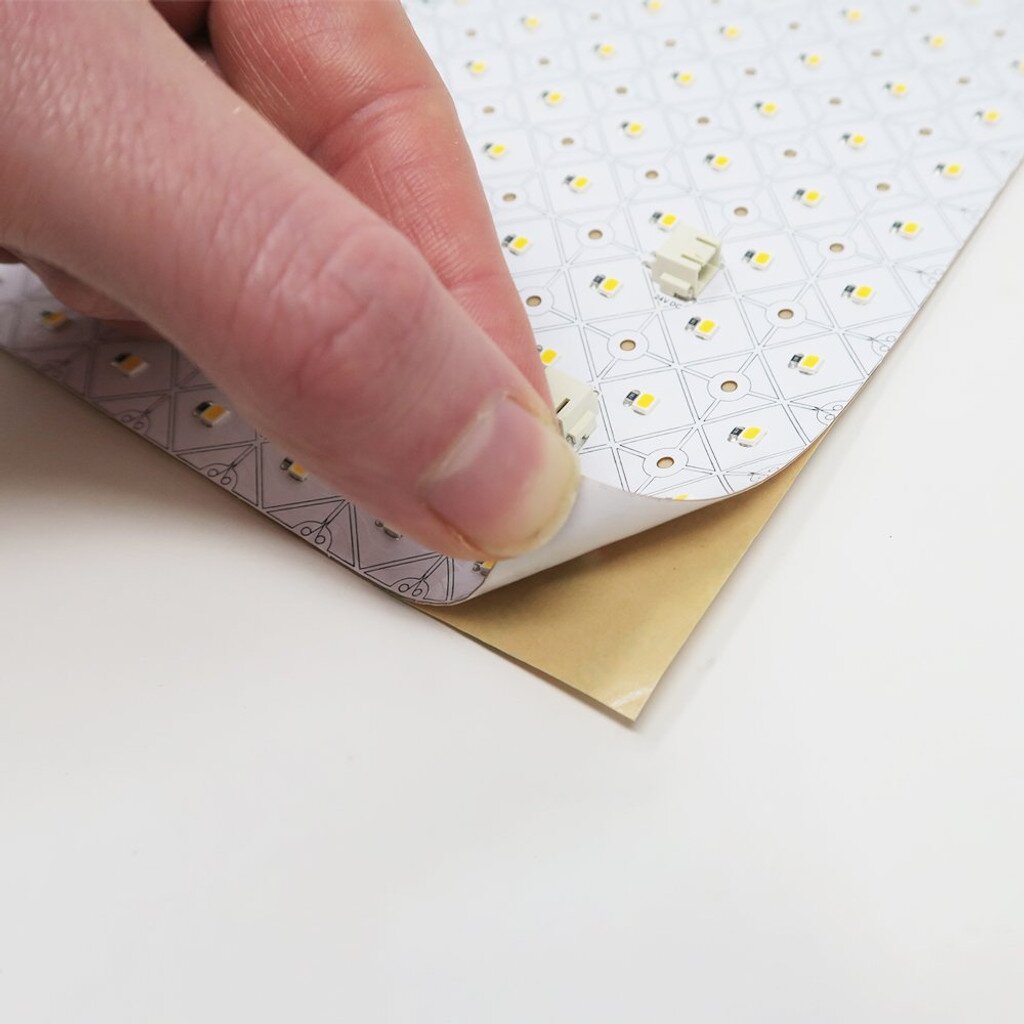

3. Mount The Light Sheets
Peel off the protective layer from the adhesive backing and press the light sheet onto the surface, ensuring a secure bond. Take care to only press between the chips.

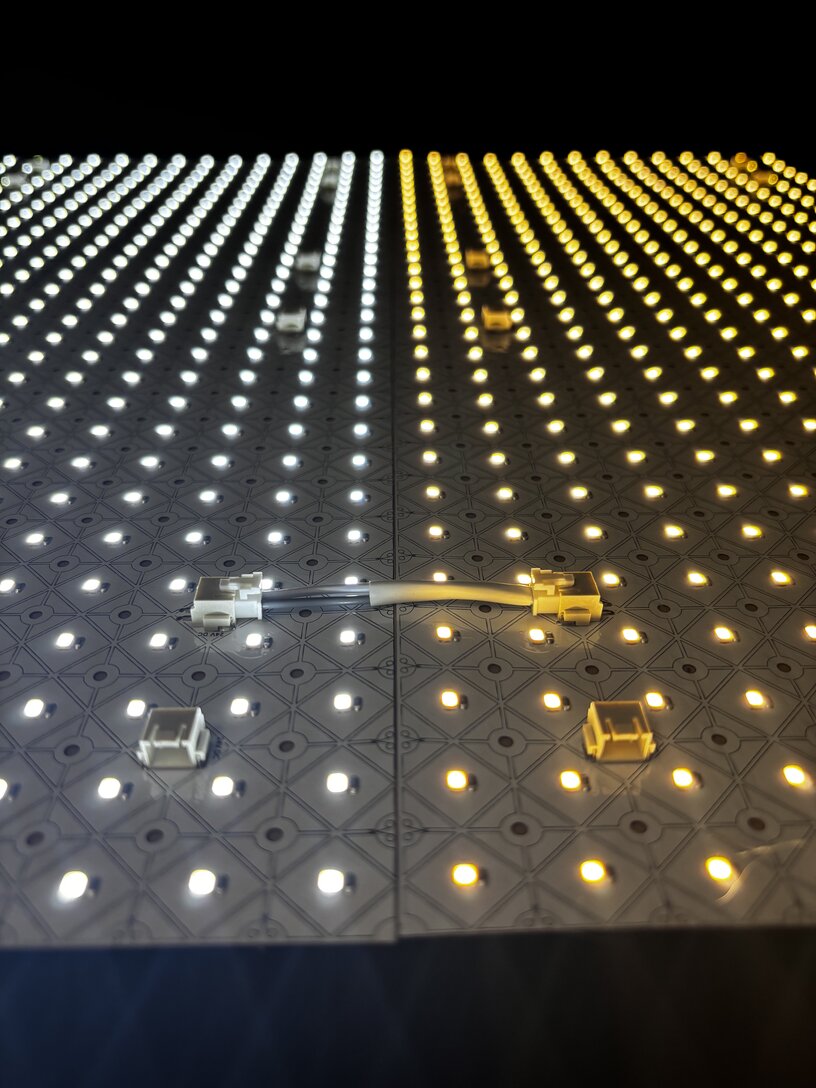

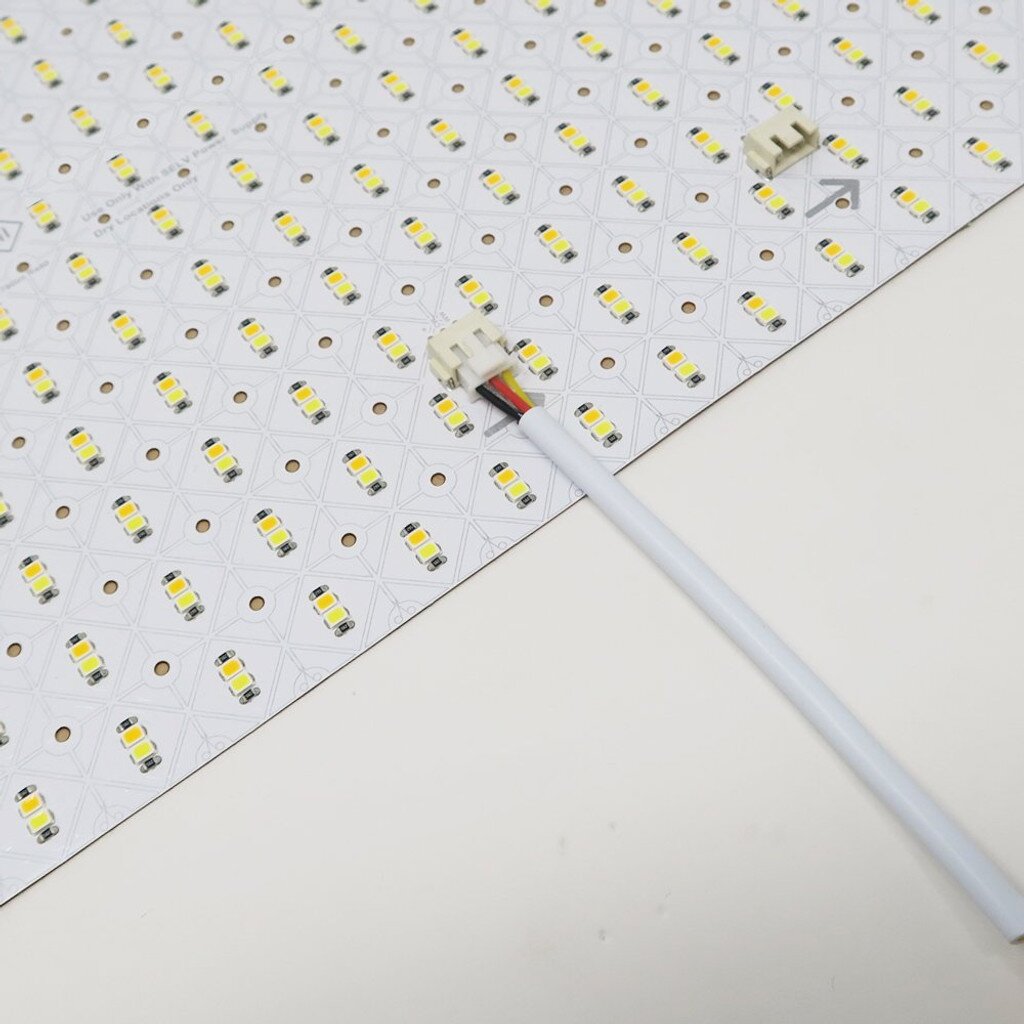

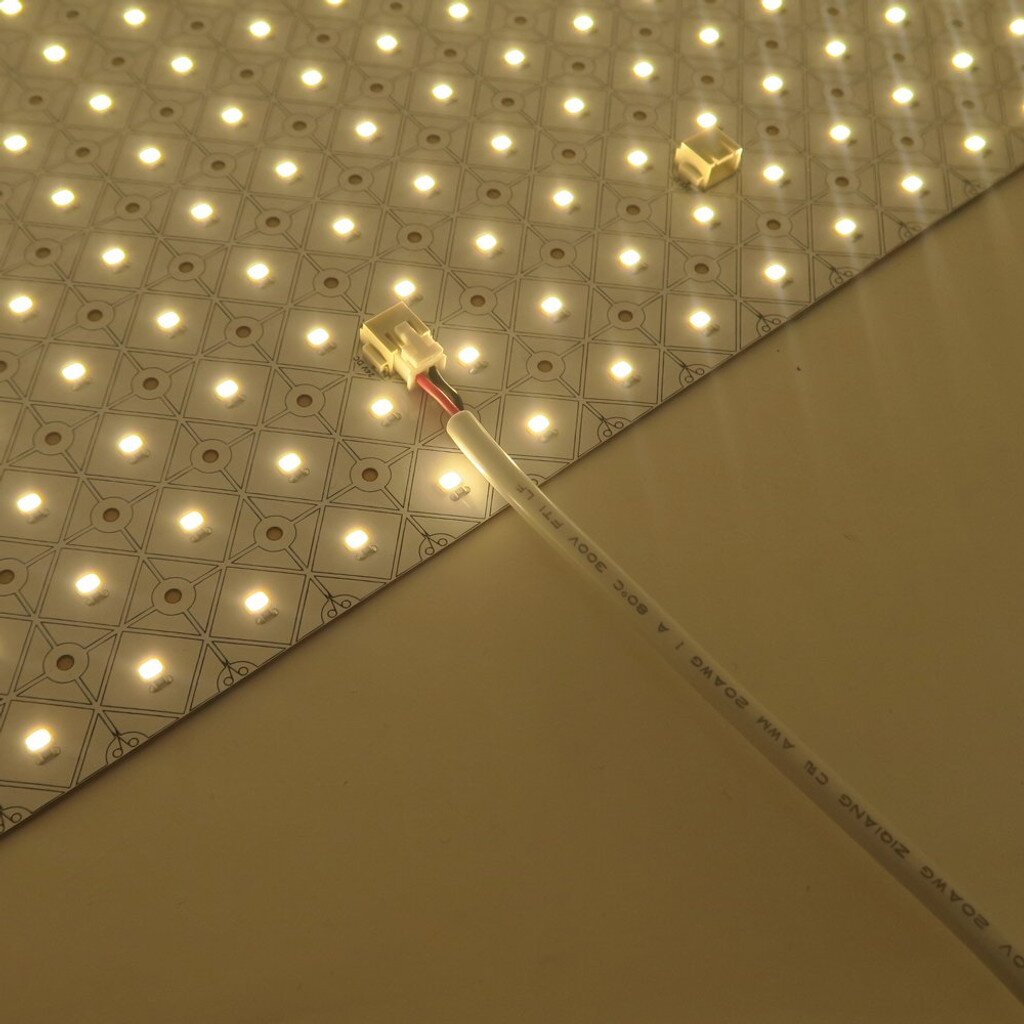

4. Connect The Sheets
Each sheet comes with connection cables, enabling you to link multiple sheets together for larger or continuous lighting installations.
5. Turn the Power On
Once the light sheets are mounted and connected, turn on the power to test the system. Adjust the positioning of the sheets as needed, ensuring everything is securely in place and fully operational.
Where Can You Install Our Light Sheets?
Our light sheets are designed for flexible use across large areas, allowing for seamless illumination without the need for multiple LED strips. Their versatility makes them ideal for a range of applications:
Retail, Point Of Sale & Business Lighting
Ideal for showrooms, product displays, fitting rooms, and window displays, the LS24-CCT allows you to adjust light temperatures to enhance product visibility and create an inviting environment.
Architectural Lighting
Perfect for walls, ceilings, and furniture in offices, commercial buildings, and public spaces, seamlessly integrating into modern designs.
Signage & Displays
Provides even backlighting for signage, logos, and advertisements. The LS24 is ideal for static signs, while the LS24-CCT offers flexibility for dynamic displays.
Hospitality & Entertainment
Used in hotels, restaurants, and bars for accent lighting and adjusting ambience with tunable white options.
Home Applications

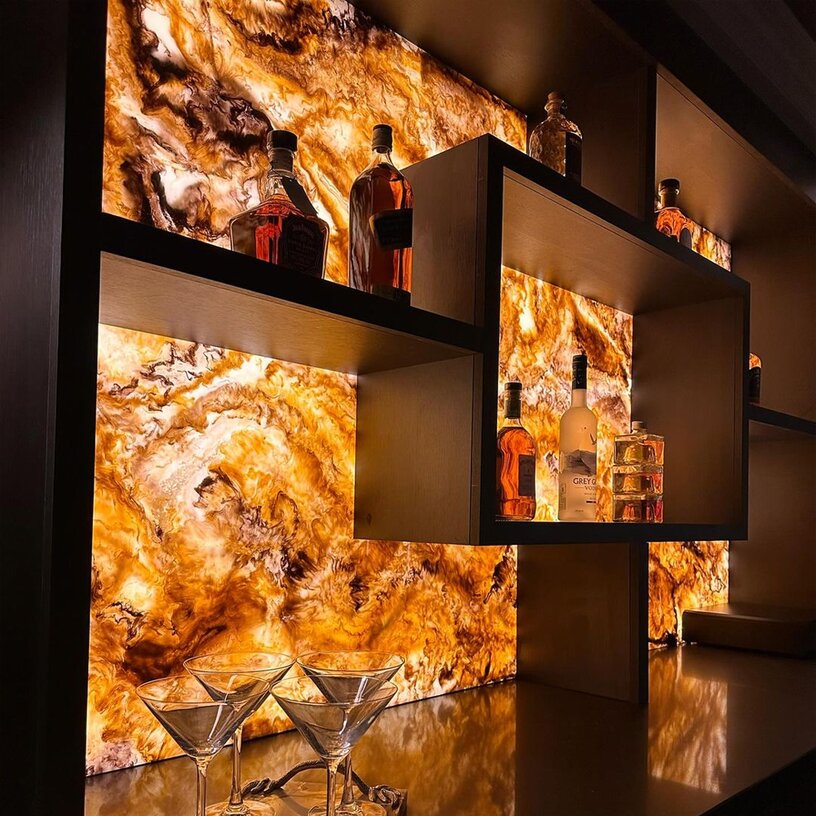

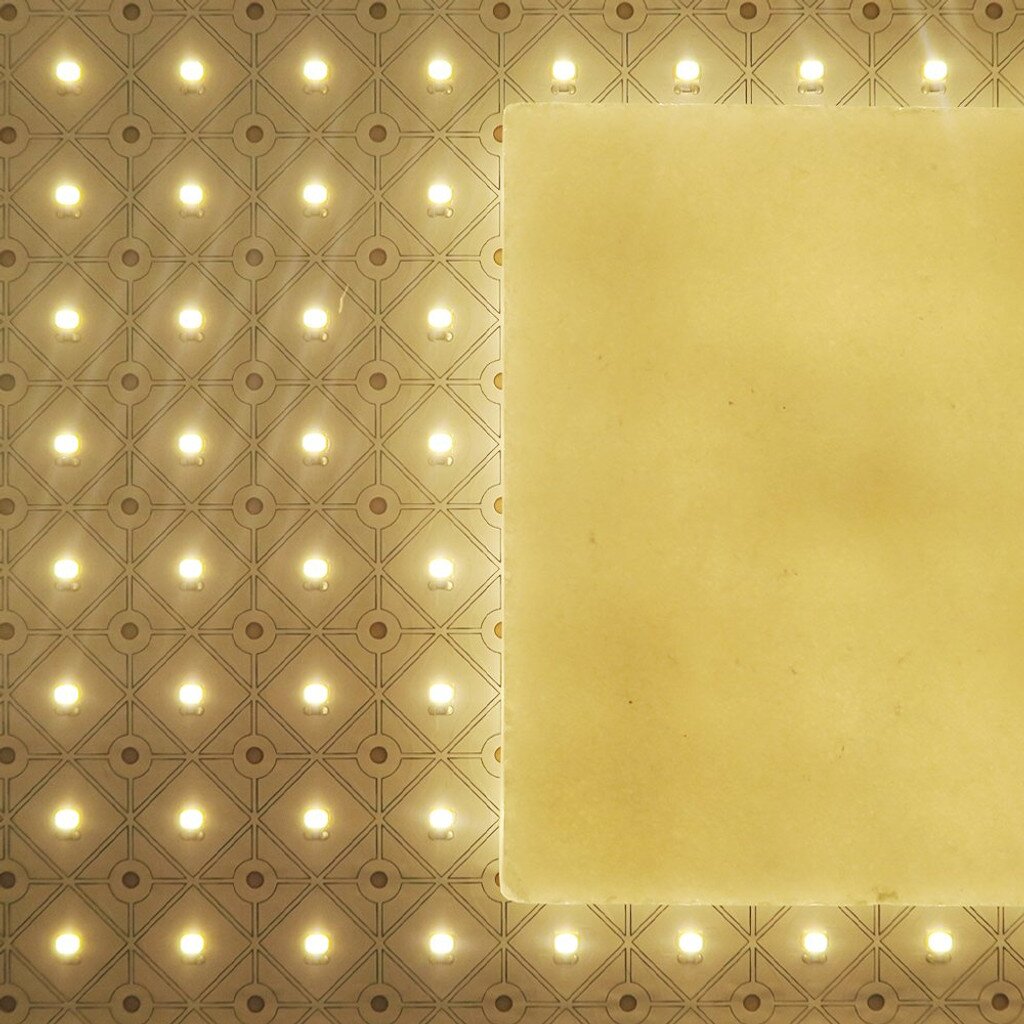

Great for use in kitchens behind marble countertops to create a backlit effect, as well as for under-cabinet lighting, home offices, and wardrobes.
FAQS
What Comes In The Pack?
Each pack includes 4 light sheets and the necessary cables for easy installation.
Can LED Light Sheets Be Customised?
Yes, our LS24 and LS24-CCT light sheets can be cut at 16.77mm intervals, allowing precise customisation to fit various project needs.
With 420 to 840 LEDs per sheet, they offer flexibility for both small and large spaces. Additionally, the LS24-CCT offers tunable white temperatures (from 2700K to 6500K), allowing you to adjust the colour to match your design requirements.
Can Our LED Light Sheets Be Dimmed?
Yes, our light sheets are dimmable, allowing you to adjust the brightness to suit different settings and moods.
Are Ultra LEDs Light Sheets Easy To Install?
Installation is straightforward, thanks to the 3M adhesive backing and the flexible design, allowing the sheets to be mounted on various surfaces and even curved areas.
What Are The Power Requirements For Ultra LEDs Light Sheets?
Our light sheets operate at 24V DC and use between (however many watts per sheet).
Can It Be Used Outside?
No, our LED light sheets are designed specifically for indoor use. They lack the waterproofing and environmental protection needed for outdoor applications, which could affect performance and durability if exposed to moisture or outdoor elements.
At Ultra LEDs, our LED Light Sheets are designed to transform large spaces with seamless, high-output lighting.
With options for flexible cutting, tunable colours, and RGBW control, these light sheets provide a versatile solution for retail displays, architectural features, and signage. Whether you need single colour, CCT, or RGBW, each option ensures consistent, uniform illumination tailored to your project’s requirements.
Discover how Ultra LEDs Light Sheets can enhance your next project.
For more inspiration and details, visit ultraleds.co.uk or follow us on Instagram @ultraleds.co.uk.
